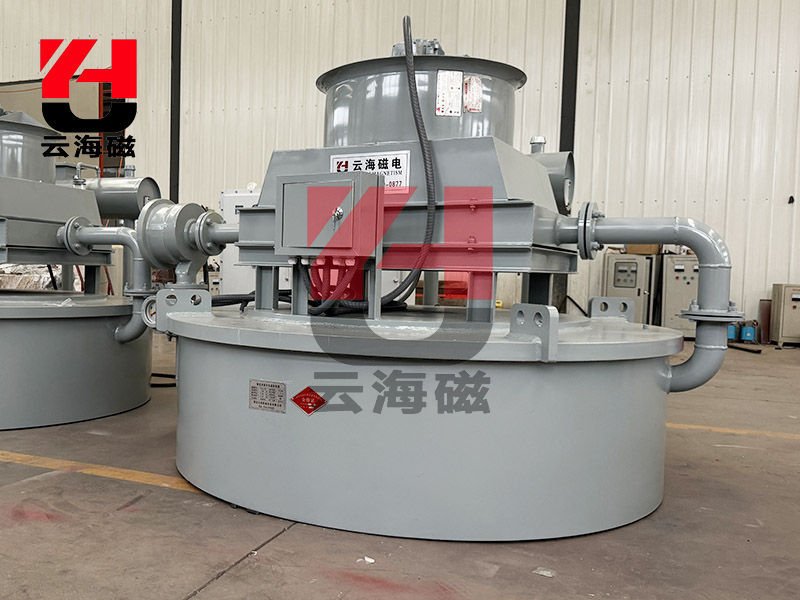

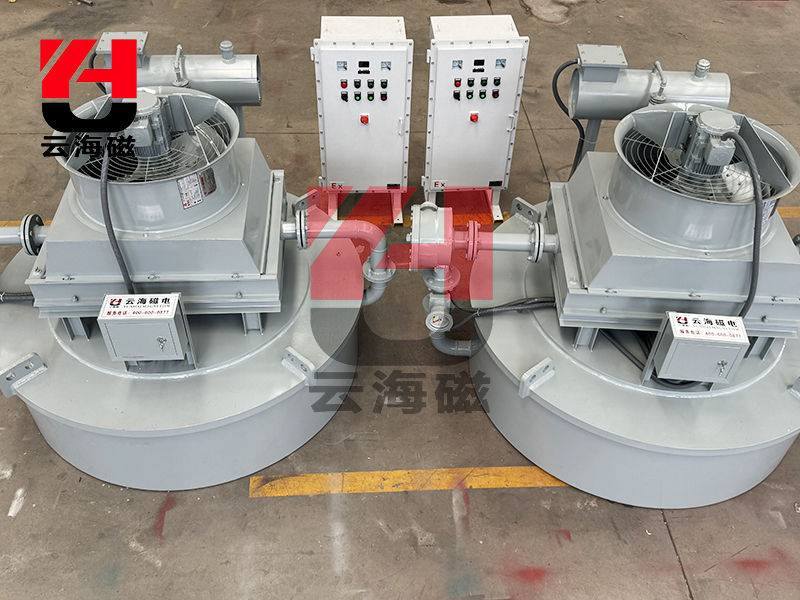

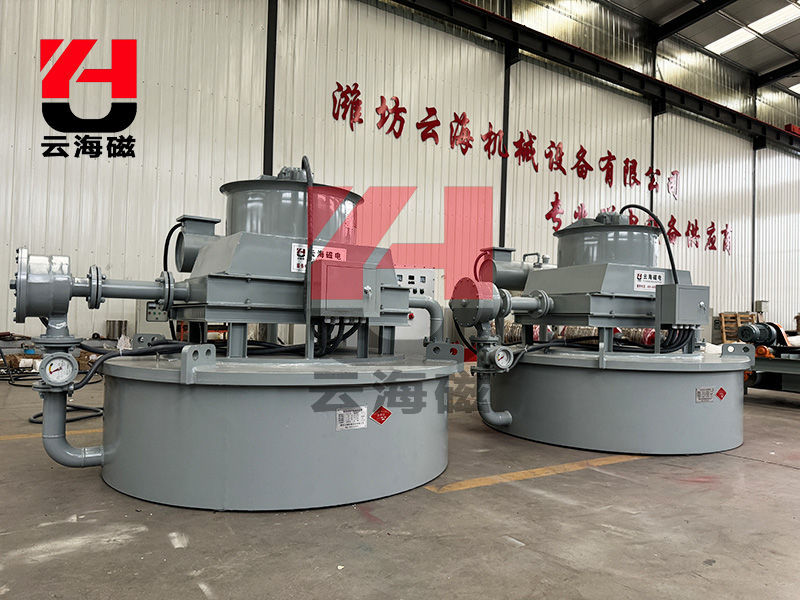

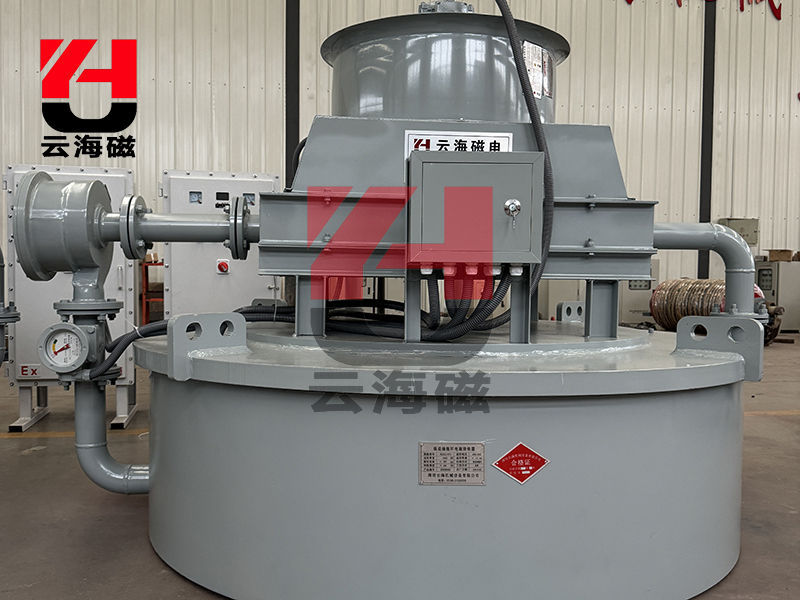

RCDEJ forced oil circulation electromagnetic iron remover

Scope of Application

working principle

The body of the iron remover adopts a sealed structure, and transformer oil with good electrical insulation performance is used as the cooling medium inside. When the excitation coil is energized and generates heat, the heat is transferred to the transformer oil, which is circulated through the transformer dedicated oil pump. The transformer oil enters the cooler, and the heat is forcibly carried away by the fan. The excitation system is powered on to generate a strong magnetic field. When the scattered materials on the conveyor pass under the iron remover, the ferromagnetic impurities mixed in the materials are attracted by the magnetic field force and adsorbed on the surface of the iron remover. After the power is cut off, the iron impurities automatically fall off, thus completing the iron unloading.

Technical Features

1. Adopting transformer forced oil circulation cooling technology, the temperature rise is extremely low, and the cooling technology is mature, safe, and reliable.

2. The iron core is made of cold-rolled silicon steel sheets with high magnetic permeability and high saturation induction intensity, with a magnetic permeability much higher than that of ordinary pure iron materials, greatly reducing hysteresis loss and improving the stability of the total magnetic field.

3. The magnetic circuit of the iron remover is short, the magnetic loss is small, the magnetic field gradient is large, the iron remover has strong ability, and the iron removal rate is high.

4. The iron remover is lightweight, compact, and has good heat dissipation effect.

5. The excitation coil is completely immersed in transformer oil and forced to circulate and dissipate heat through an air cooler, resulting in a low temperature rise of the coil and greatly improving its service life.

6. The control cabinet adopts a two-stage three-phase full bridge rectifier, with stable and reliable output.

7. It has two operation modes: manual and centralized control, which can meet the requirements of various occasions.

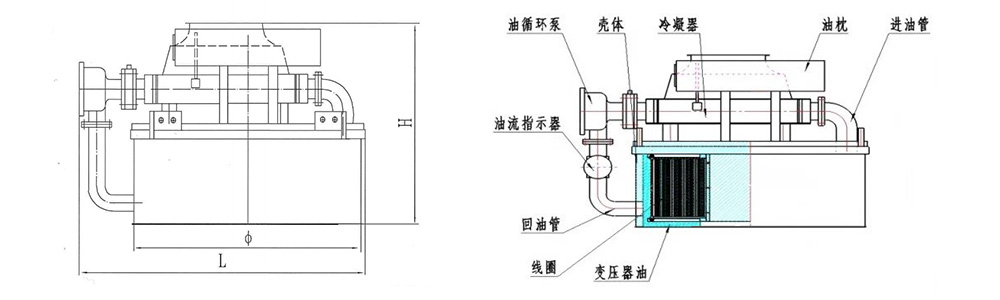

Technical Specifications

Model/Parameters/Project		Applicable bandwidth mm	Rated lifting height h mm	Magnetic field strength ≈ mT	Excitation power ≤ kw	Fan power KW	Overall dimensions L×Φ×H mm	Applicable belt speed≤m/s	weight kg
RCDEJ-10	T1	1000	300	90	6.5	0.25	1700 × 1300 × 1210	≤5.8	2000
	T2			120	9.5	0.25	1700 × 1300 ×1250		2350
	T3			150	5	0.25	1750×1350×1280		2870
RCDEJ-12	T1	1200	350	90	9	0.25	1750×1350×1250		2300
	T2			120	14	0.25	1750 ×1350 ×1280		2900
	T3			150	20	0.25	2000×1600×1380		4740
RCDEJ-14	T1	1400	400	90	14	0.25	1750×1350×1280		2900
	T2			120	20	0.25	2000 × 1600 ×1420		4740
	T3			150	29	0.25	2230×1830×1450		6760
RCDEJ-16	T1	1600	450	90	18	0.25	2000×1600×1420		4900
	T2			120	28	0.25	2230 × 1830 × 1450		6000
	T3			150	32	0.25	2350×1950×1480		7950




RCDEJ-18	T1	1800	500	90	26	0.75	2250×1850×1480		7000
	T2			120	32	0.75	2350×1950×1480		8000
	T3			150	40	0.75	2460×2060×1500		9900




RCDEJ-20	T1	2000	550	90	30	0.75	2400×2000×1480		7200
	T2			120	39	0.75	2500×2100×1500		9000
	T3			150	4	0.75	2660×2260×1500		11500




RCDEJ-22	T1	2200	600	90	39	0.75	2460×2060×1500		10300
	T2			120	42	0.75	2660 × 2260 ×1520		11800
	T3			150	45	0.75	2900×2500×1520		12500




RCDEJ-24	T1	2400	650	90	40	0.75	2660×2260×1520		12800
	T2			120	46	0.75	2850×2450×1550		14980
	T3			150	54	0.75	3050×2650×1580		16500
