RCYB suspended permanent magnet iron remover

RCYB suspended permanent magnet iron remover
RCYB suspended permanent magnet iron remover

RCYB suspended permanent magnet iron remover

The RCYB suspended permanent magnet iron remover is suitable for removing iron from non-magnetic materials on belt conveyors, vibrating feeders, and discharge chutes. Its internal magnetic system has a service life of over 15 years

Manual response

Technical response

customized solution

Product advantages

Weifang Yunhai Machinery Equipment Co., Ltd. was founded in 2009. Its main products include industrial automation batching systems, electromagnetic permanent magnet separators, permanent magnet magnetic separators, electromagnetic vibration feeders, belt screw conveyors, electromagnetic drums, crushers, packaging machines, dust collectors, and other series of products. We have well-equipped laboratories and laboratories, hire industry experts to lead experiments and laboratory work, provide technical test data and research and development basis, and provide successful and effective iron removal solutions for various industries.

  • +

    Company incorporation

  • +

    reputable manufacturer

  • +

    invention patent

  • +

    product coverage



RCYB suspended permanent magnet iron remover


Scope of Application


This series of products is designed with computer-aided technology to form a superior dual pole structure. It has the characteristics of high magnetic field strength, strong magnetic force, stable and reliable performance, reasonable structure, easy maintenance, etc. It works stably and reliably in harsh environments with extremely low failure rate. This product is used in conjunction with conveying equipment such as belt conveyors, vibrating conveyors, and chutes, and can remove ferromagnetic substances mixed in bulk materials weighing 0.1-45 kilograms. Its internal magnetic system has a service life of more than 15 years, and all performance indicators of the product meet the JB/T8711-2012 standard, with some products exceeding this standard. This series of products is widely used in industries such as coking, cement, electricity, coal mining, brick and tile, glass, chemical, gypsum, mining, grain processing, etc. It is one of the first iron removal equipment for many users.

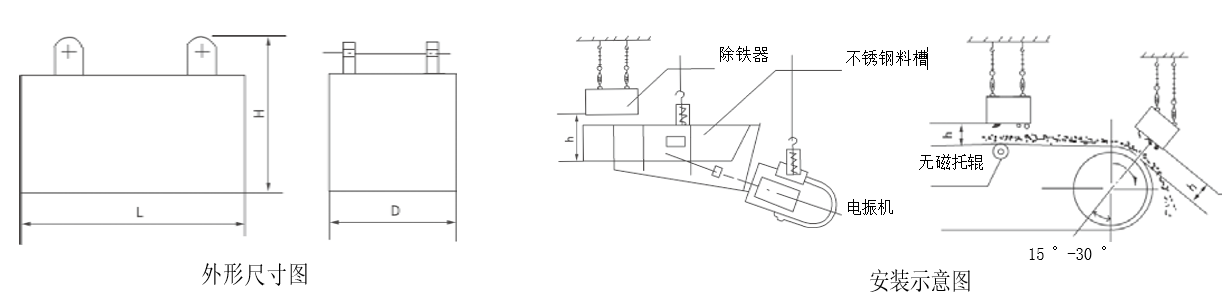

qq截图20250329160211


Technical Specifications



Parameters/Project/ModelAdaptive bandwidth mmHanging height h ≤ mmadapt to belt speed
       ≤m/s
Material thickness: Material thickness ≤ mmWeight kgDimensions mm
LDH
RCYB-4400125







       4.5
60115400300230
RCYB-4-1400753065400250140
RCYB-550015090206500350260
RCYB-5-15001005096500260160
RCYB-6600175120295600450280
RCYB-6-160013060158600350180
RCYB-6.5650200150450650600300
RCYB-8800250200680950950380
RCYB-8-1800200150550800600300
RCYB-101000300250118011001000380
RCYB-121200350300167013001340420
RCYB-141400400350235015001500420
RCYB-161600450400285017501750460

Note: All models in this series have reinforced T1, T2, and T3 product designs that are higher than the national standard. The rated magnetic field strength at the lifting height is 90mT, 120mT, and 150mT, respectively, and can be customized according to customer requirements.



product image

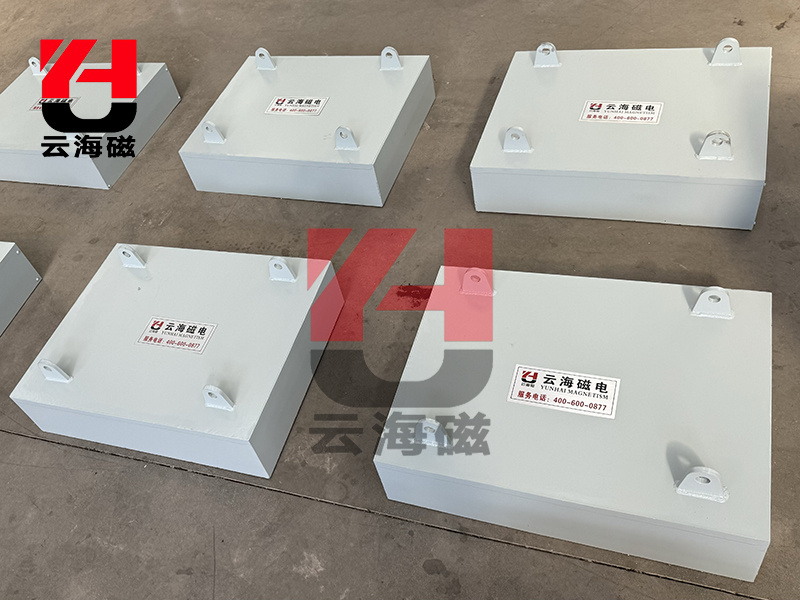

  • 微信图片_20250329150655

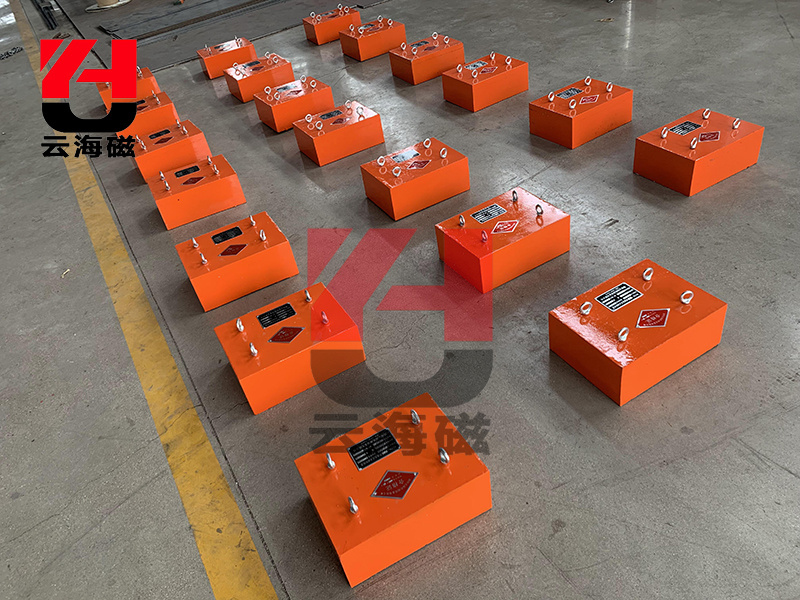

  • 微信图片_20250329150656

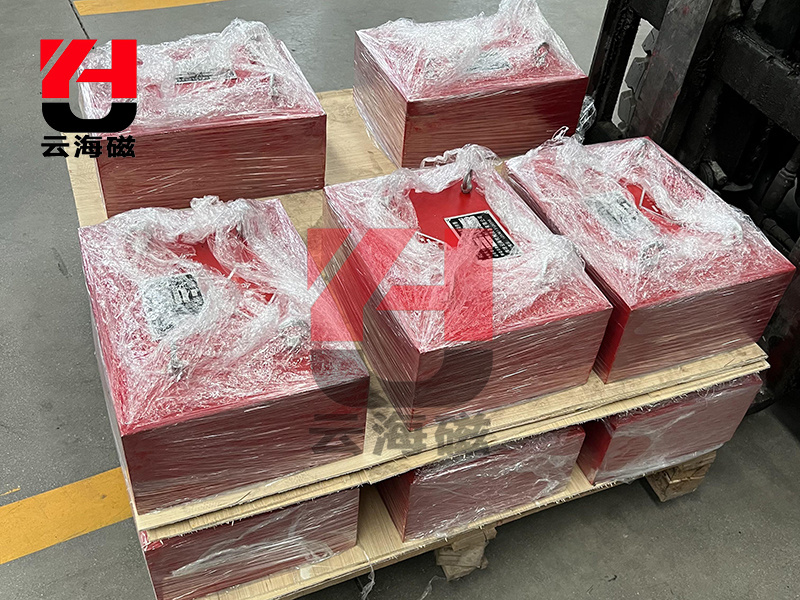

  • 微信图片_20250329150900

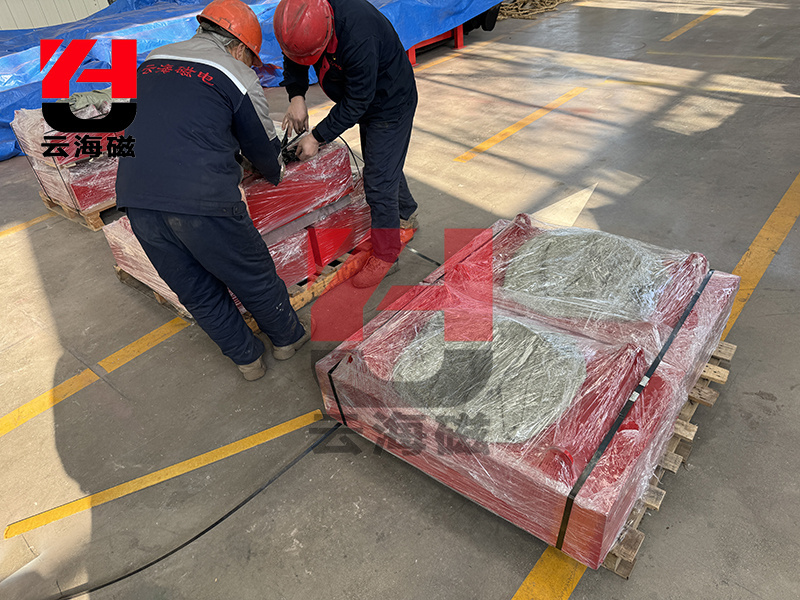

  • 微信图片_20250329152026

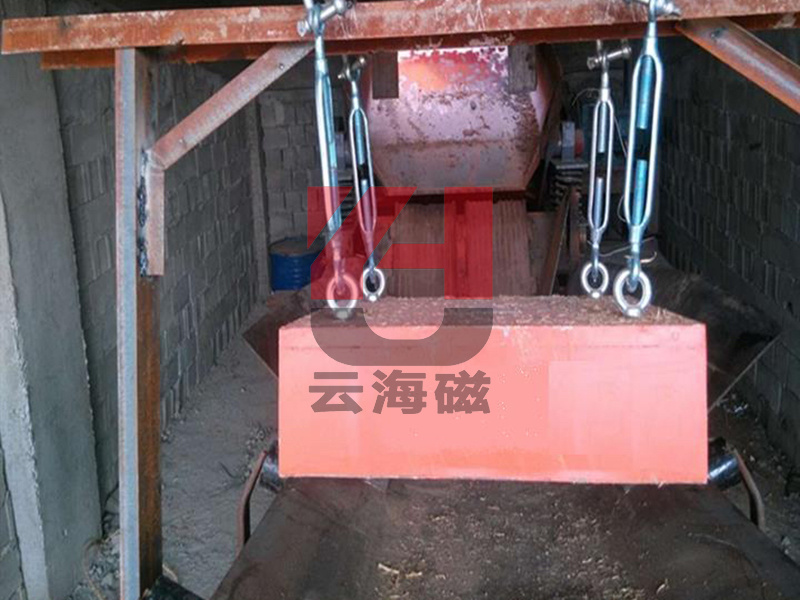

on-site installation

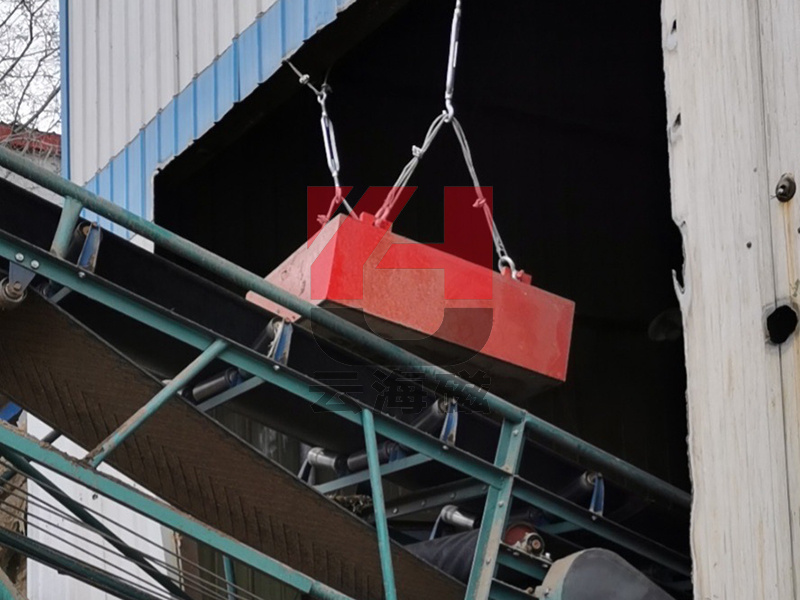

  • 微信图片_20250329160525

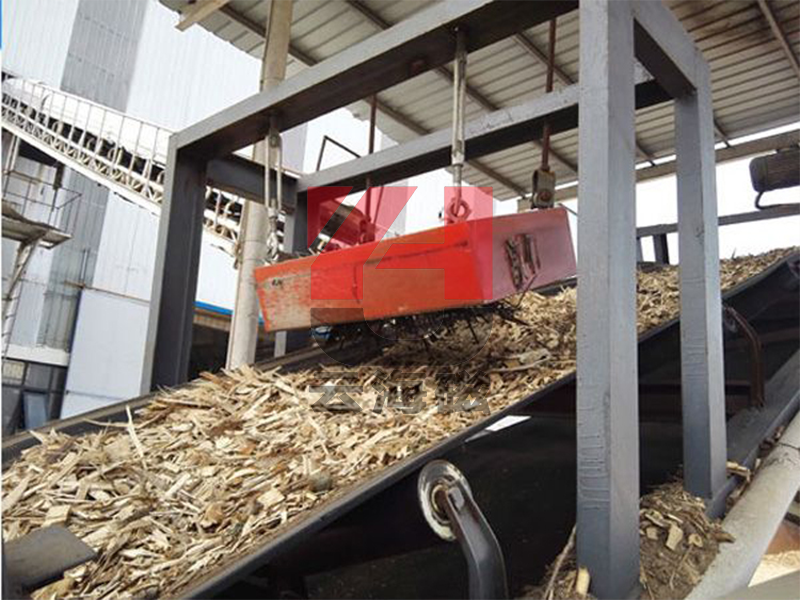

  • 微信图片_20250329160526
  • 微信图片_202503291605251

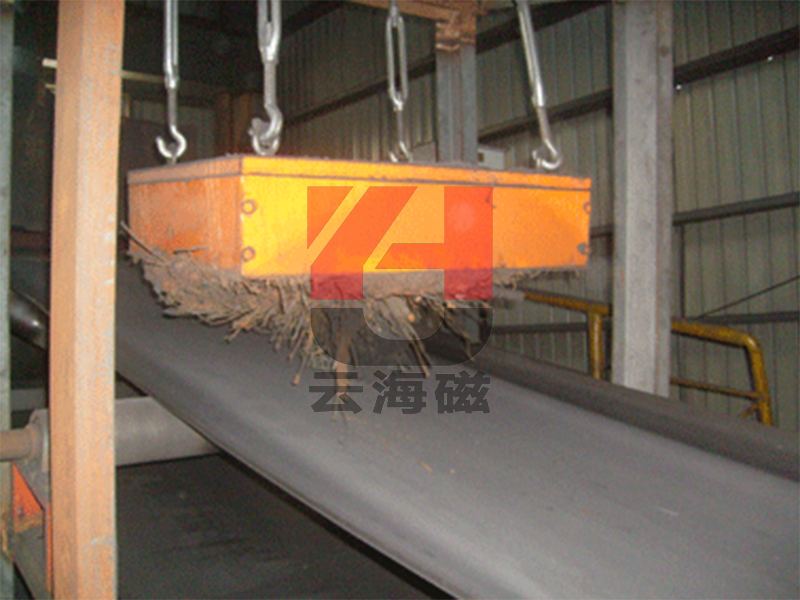

  • 微信图片_202503291605261
