RCYP manual permanent magnet iron remover

Product Introduction

Used for automatically removing ferromagnetic impurities from non-magnetic materials, it can sustainably adsorb ferromagnetic impurities without the need for external power supply. Its internal magnetic circuit adopts computer simulation design and a perfect dual pole structure. When the ferromagnetic impurities adsorbed at the bottom of the magnet accumulate to a certain extent, manually shake the handle to drive the scraper and remove the scrap iron.

The RCYP series manual permanent magnet iron remover adopts the design concept of "simplicity is not simple", achieving a balance between cost, efficiency, and reliability. It is still irreplaceable in small production lines and specific environments (such as explosion-proof workshops).

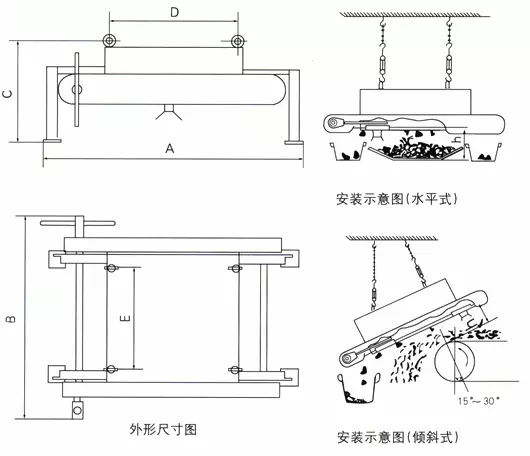

ba8e993e2c0e2615cd3d6159cf49e05

Technical Features

1. Energy saving and durability, zero energy consumption operation, permanent magnet life ≥ 16 years, compared to motor type energy-saving.

2. Corrosion resistant material, acid and alkali resistant, suitable for humid and high-temperature environments.

3. Low maintenance costs.

Technical Specifications

Parameters/Project/Model	Applicable bandwidth mm	Rated lifting height mm	magnetic field strength ≥mT	Suitable for material thickness ≤ mm	Weight kg	Hanging size mm	Dimensions mm	Magnetic system size mm
RCYP-4	400	125	50	70	250	470×340	1100×910×500	500×500
RCYP-5	500	150	60	90	580	570×440	1200×1020×550	600×600
RCYP-6	600	175	60	125	680	670×500	1300×1120×560	700×700
RCYP-6.5	650	200	70	150	820	715×550	1380×1170×550	750×750
RCYP-8	800	250	70	200	1500	915×750	1630×1300×560	950×950
RCYP-10	1000	300	70	250	2300	1050×900	1765×1500×560	1100×1100
RCYP-12	1200	350	70	300	3300	1250×1140	1960×1750×580	1300×1340
RCYP-14	1400	400	70	350	3800	1450×1350	2180×1950×620	1500×1550

Note: All models in this series have reinforced T1, T2, and T3 product designs that are higher than the national standard. The rated magnetic field strength at the lifting height is 90mT, 120mT, and 150mT, respectively, and can be customized according to customer requirements.

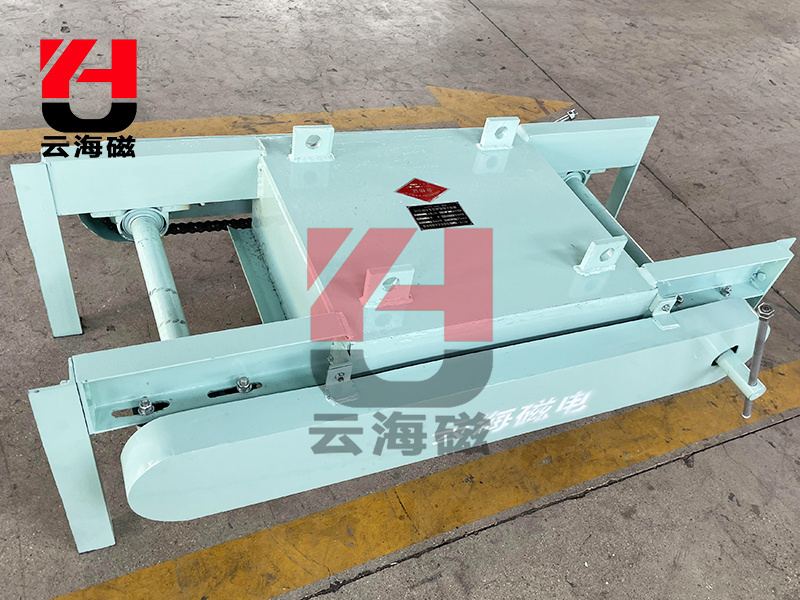

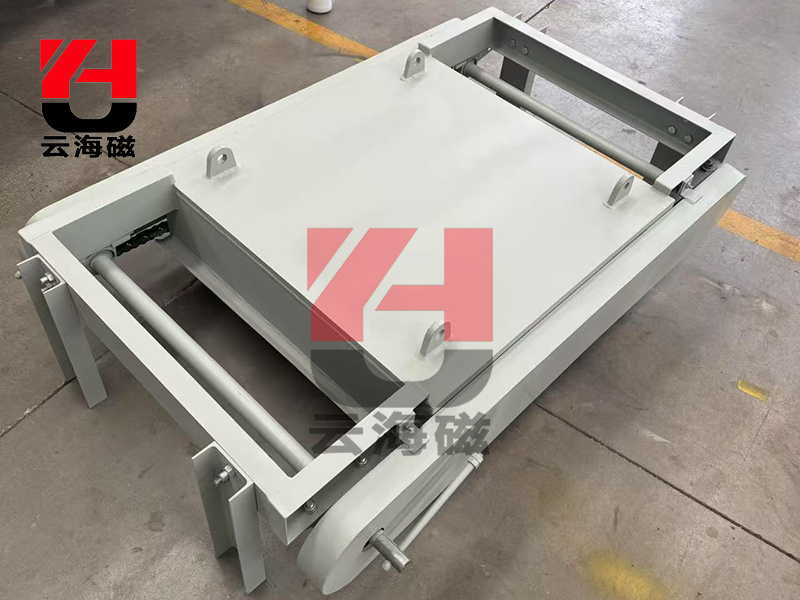

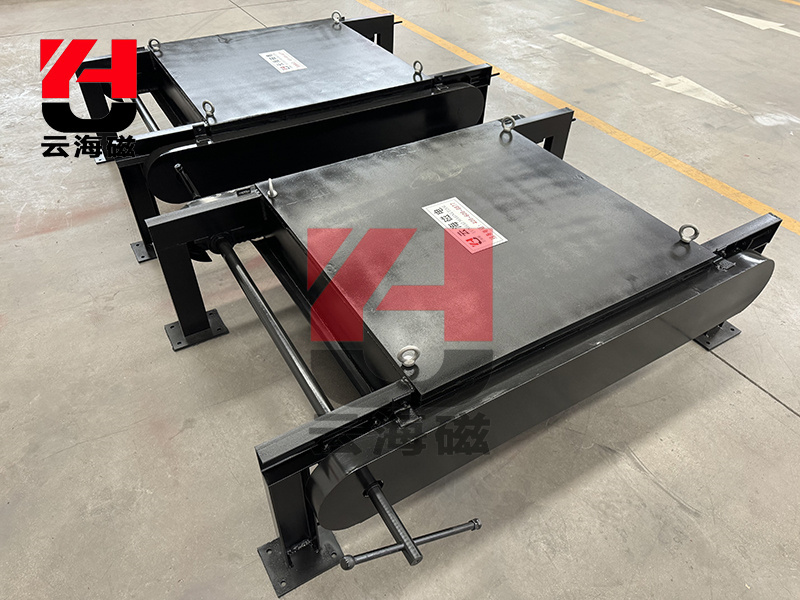

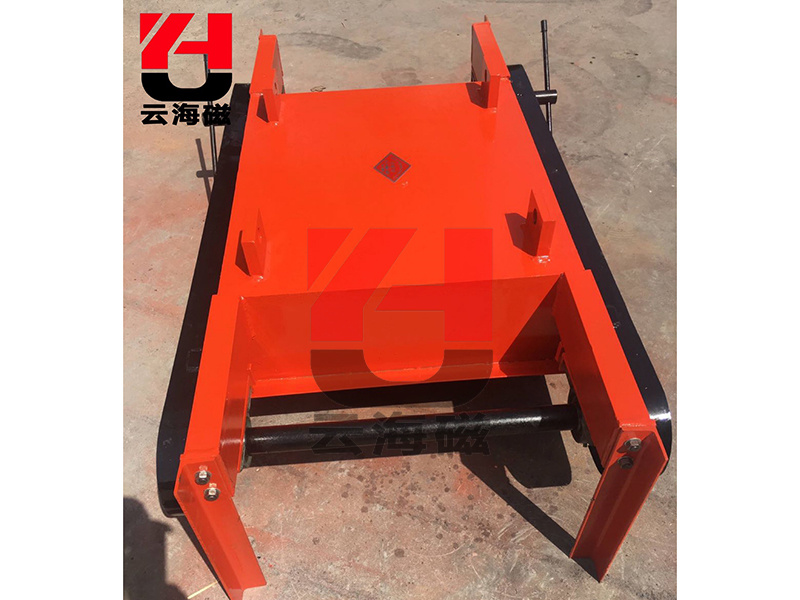

product image
