RCDC air-cooled electromagnetic self dumping iron remover
RCDC air-cooled electromagnetic self dumping iron remover
Manual response
Technical response
customized solution
Product advantages
Weifang Yunhai Machinery Equipment Co., Ltd. was founded in 2009. Its main products include industrial automation batching systems, electromagnetic permanent magnet separators, permanent magnet magnetic separators, electromagnetic vibration feeders, belt screw conveyors, electromagnetic drums, crushers, packaging machines, dust collectors, and other series of products. We have well-equipped laboratories and laboratories, hire industry experts to lead experiments and laboratory work, provide technical test data and research and development basis, and provide successful and effective iron removal solutions for various industries.
RCDC air-cooled electromagnetic self dumping iron remover
Scope of Application
Suitable for occasions such as steel plants, cement plants, power plants, etc. It is commonly used for removing iron from slag and protecting important equipment such as roller presses, vertical mills, and crushers. Suitable for occasions with good environmental conditions.
Technical Features
◆The magnetic circuit adopts computer simulation design, with deep magnetic permeability and strong magnetic force.
◆Special air duct design, axial flow fan forced air cooling, large air volume, high air pressure, making the coil dissipate heat quickly, low temperature rise, and small difference in magnetic field between cold and hot states.
◆The coil adopts advanced immersion insulation and curing treatment technology to protect it from dust and harmful gases, improve the insulation performance of the whole machine, and ensure long-term continuous operation without aging.
◆ Automatic iron unloading, easy maintenance, drum shaped structure with belt automatic correction function, specially designed fully sealed bearing seat, can achieve long-term trouble free operation.
◆The product has good compatibility, complete rectification equipment functions, manual and centralized control functions, and can meet the requirements of various occasions.
Technical Specifications
| Model/Parameters/Project | 适用带宽mm | Rated lifting height mm | magnetic field strength ≥mT | Material thickness ≤ mm | Excitation power ≤ kw | Drive power ≤ kw | adapt to belt speed≤m/s | Weight kg | Overall dimensions mm | ||||
| A | B | C | D | E | |||||||||
| RCDC-5 | 500 | 150 | 60 | 100 | 1 | 1.5 | 4.5 | 1080 | 2060 | 965 | 720 | 770 | 455 |
| RCDC-6 | 600 | 175 | 60 | 120 | 1.6 | 1.5 | 1350 | 2160 | 1170 | 810 | 1070 | 575 | |
| RCDC-6.5 | 650 | 200 | 70 | 150 | 2 | 2.2 | 1530 | 2380 | 1370 | 820 | 888 | 650 | |
| RCDC-8 | 800 | 250 | 70 | 200 | 4 | 2.2 | 2100 | 2340 | 1420 | 860 | 923 | 800 | |
| RCDC-10 | 1000 | 300 | 70 | 250 | 6 | 3.0 | 3380 | 2810 | 1700 | 880 | 1180 | 1450 | |
| RCDC-12 | 1200 | 350 | 70 | 300 | 8 | 4.0 | 4150 | 3000 | 1850 | 850 | 1650 | 1500 | |
| RCDC-14 | 1400 | 400 | 70 | 350 | 12 | 4.0 | 5500 | 3280 | 2070 | 1020 | 1600 | 1410 | |
| RCDC-16 | 1600 | 450 | 70 | 400 | 15 | 5.5 | 6900 | 3600 | 2270 | 1050 | 1800 | 1500 | |
| RCDC-18 | 1800 | 500 | 70 | 450 | 20 | 7.5 | 8800 | 4380 | 2500 | 1160 | 2220 | 1500 | |
| RCDC-20 | 2000 | 550 | 70 | 500 | 26 | 7.5 | 10500 | 4500 | 2900 | 1300 | 2475 | 1550 | |
| RCDC-22 | 2200 | 600 | 70 | 550 | 32 | 11 | 12900 | 5100 | 3100 | 1350 | 2600 | 1600 | |
Note: All models in this series have reinforced T1, T2, and T3 product designs that are higher than the national standard. The rated magnetic field strength at the lifting height is 90mT, 120mT, and 150mT, respectively, and can be customized according to customer requirements.

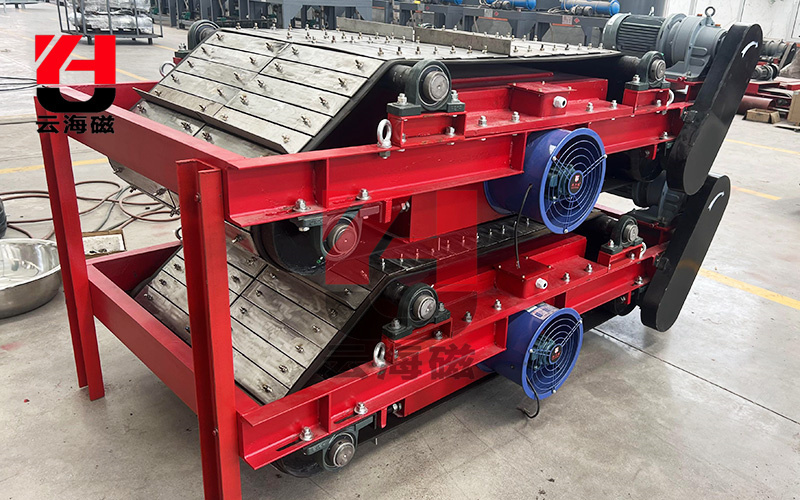

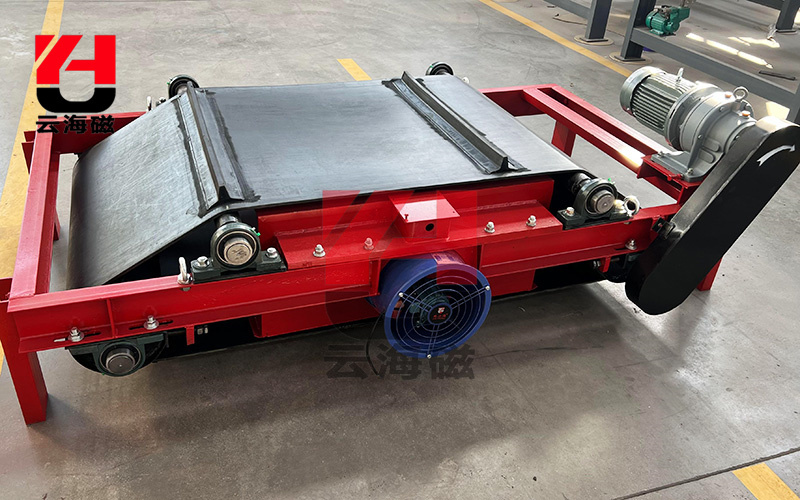

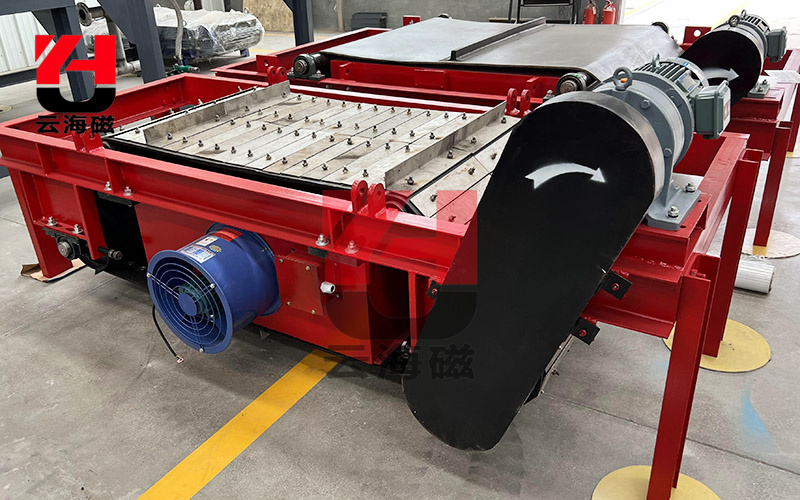

product image
on-site installation
