RCDA air-cooled electromagnetic iron remover

Product Introduction

The RCDA series air-cooled suspended electromagnetic iron remover uses air conditioning fans or axial fans for forced air cooling of the internal excitation coil; When the working environment of the iron remover is good, an air conditioning fan is used for heat dissipation. When the working environment of the iron remover is harsh (such as large dust, coal dust, and smoke), an axial flow fan is used for heat dissipation. This model has the characteristics of reasonable structural design, easy use, low failure rate, and wide range of use. It is used for iron removal of any material on conveyor belts and plays a reliable protective role for various types of crushers, grinders, and other equipment.

Technical Features

The magnetic circuit adopts computer simulation design, with a large magnetic penetration depth and strong magnetic force.

Special air duct design, axial flow fan forced air cooling, large air volume, high air pressure, making the coil dissipate heat quickly, low temperature rise, and small difference in magnetic field between cold and hot states.

The coil is treated with special immersion paint insulation and curing technology, which is resistant to oxidation and corrosion, improving the insulation performance of the whole machine and ensuring long-term continuous operation without aging.

qq截图20250327100507

Technical Specifications

Model/Parameters/Project	Adaptive bandwidth mm	Rated lifting height mm	magnetic field strength ≥mT	Material thickness ≤mm	excitation power ≤kw	fan power ≤kw	adapt to belt speed ≤m/s	Weight kg	Overall dimensions mm

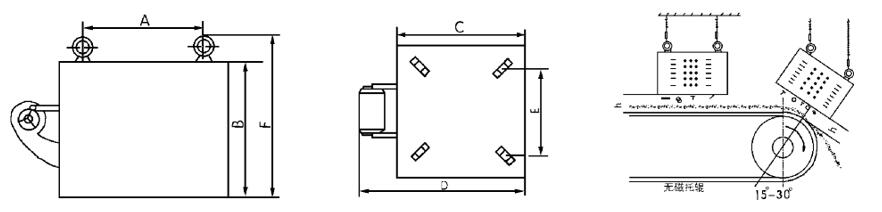

Model/Parameters/Project	Adaptive bandwidth mm	Rated lifting height mm	magnetic field strength ≥mT	Material thickness ≤mm	excitation power ≤kw	fan power ≤kw	adapt to belt speed ≤m/s	Weight kg	A	B	C	D	E
RCDA-5	500	150	60	90	1	0.15	4.5	450	710	500	430	340	340
RCDA-6	600	175	60	120	1.6	0.37		620	910	600	450	500	500
RCDA-6.5	650	200	70	150	2	0.37		750	990	710	510	780	650
RCDA-8	800	250	70	180	4	0.37		980	1080	810	550	870	740
RCDA-10	1000	300	70	230	6	0.55		1330	1400	1100	590	1250	1040
RCDA-12	1200	350	70	280	8	0.55		1950	1600	1300	640	1400	1240
RCDA-14	1400	400	70	330	12	1.1		2870	1910	1460	530	1560	1400
RCDA-16	1600	450	70	380	15	1.1×2		3800	2010	1660	530	1760	1600
RCDA-18	1800	500	70	430	20	2.2×2		4500	2360	1880	850	2000	1800

Note: All models in this series have reinforced T1, T2, and T3 product designs that are higher than the national standard. The rated magnetic field strength at the lifting height is 90mT, 120mT, and 150mT, respectively, and can be customized according to customer requirements.

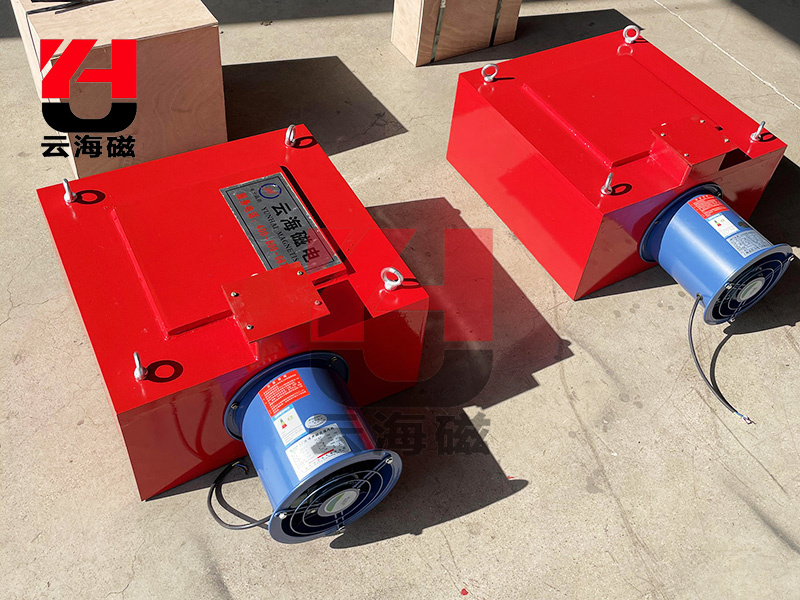

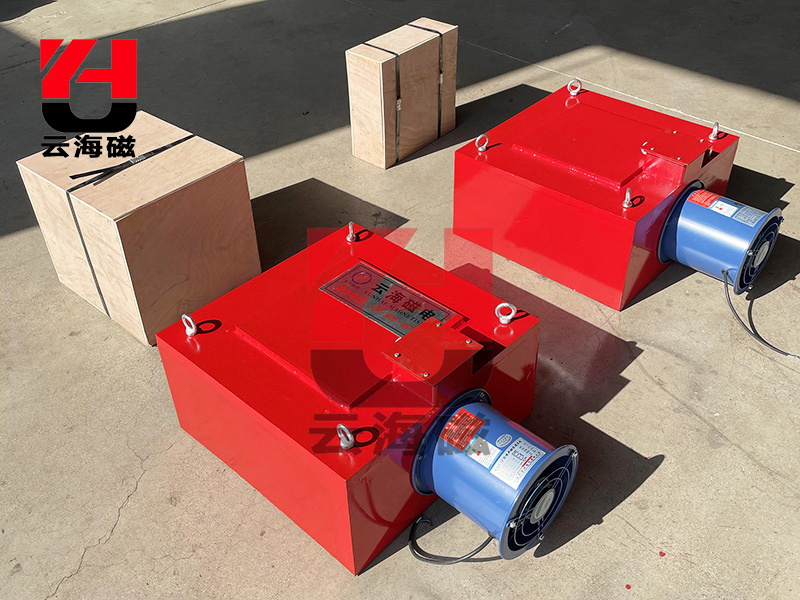

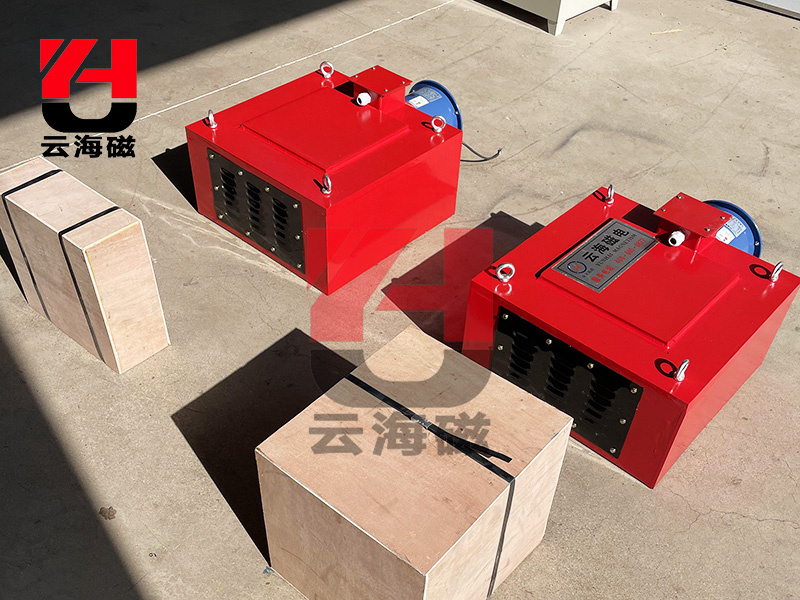

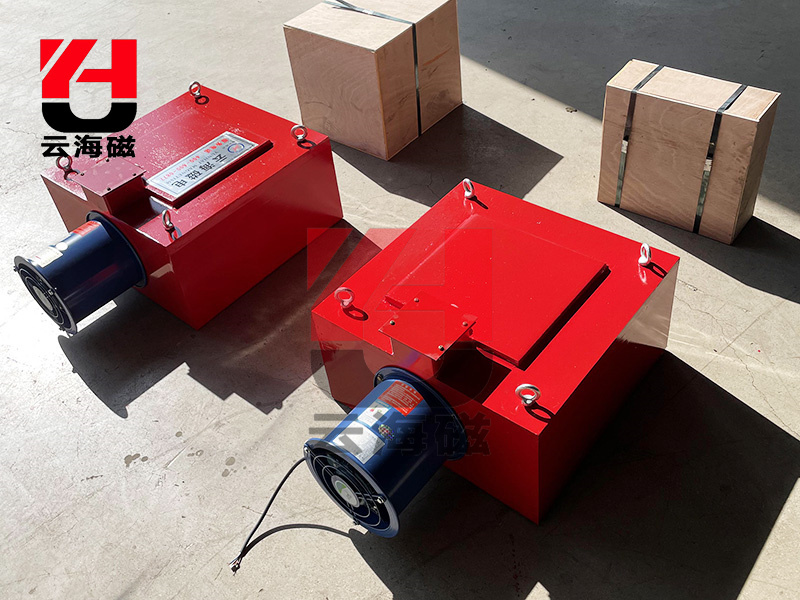

product image
