HTK magnetic ore iron remover

Scope of Application

Suitable for iron removal on magnetic ore conveyor belts such as raw ore, sintered ore, ball ore, block ore, etc. The HTK magnetic mineral iron removal system relies on its unique magnetic circuit design to separate the selected materials multiple times, thereby absorbing ferromagnetic impurities from the magnetic mineral material in a way that carries less ore, achieving the purpose of protecting subsequent crushing equipment.

Technical Features

◆ The magnetic circuit adopts computer simulation design, with unique magnetic field design, large magnetic penetration depth, and strong magnetic field.

◆ Cooperate with metal detectors to form an automatic detection and iron removal system, with no iron leakage phenomenon.

◆ Intermittent excitation, low energy consumption, stable and reliable performance.

◆ The sorting area adopts multi-stage repeated magnetic separation to ensure a small amount of ore during iron removal.

◆ Automatic iron unloading, easy maintenance, drum shaped structure with automatic correction function, specially designed fully sealed bearing seat, suitable for high dust situations on site, can achieve long-term trouble free operation.

◆ The product has good compatibility, complete functions, manual and centralized control functions, and can meet the requirements of various occasions.

Technical Specifications

Note: All models in this series have reinforced T1, T2, and T3 product designs that are higher than the national standard. The rated magnetic field strength at the lifting height is 90mT, 120mT, and 150mT, respectively, and can be customized according to customer requirements.

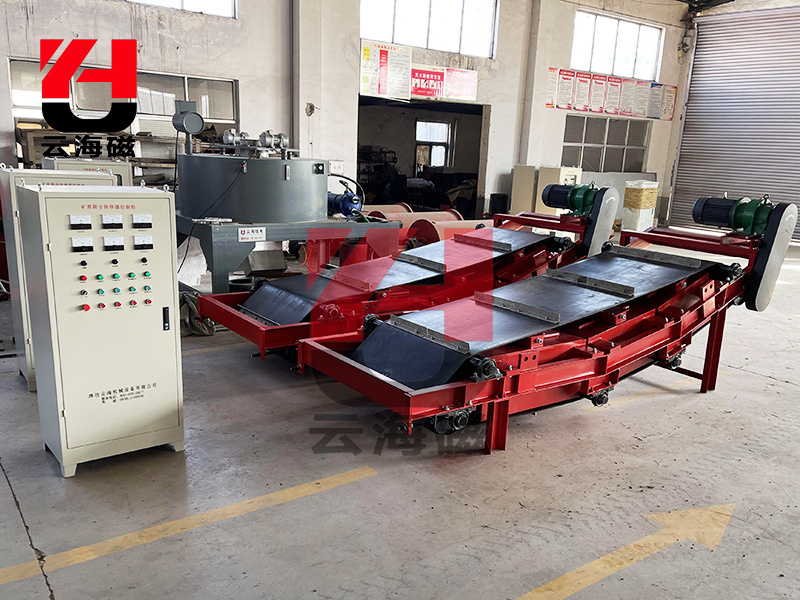

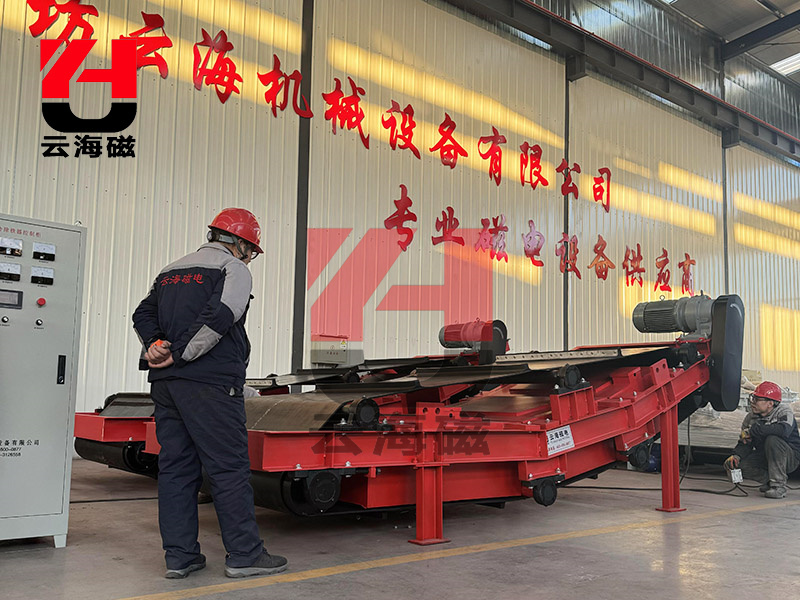

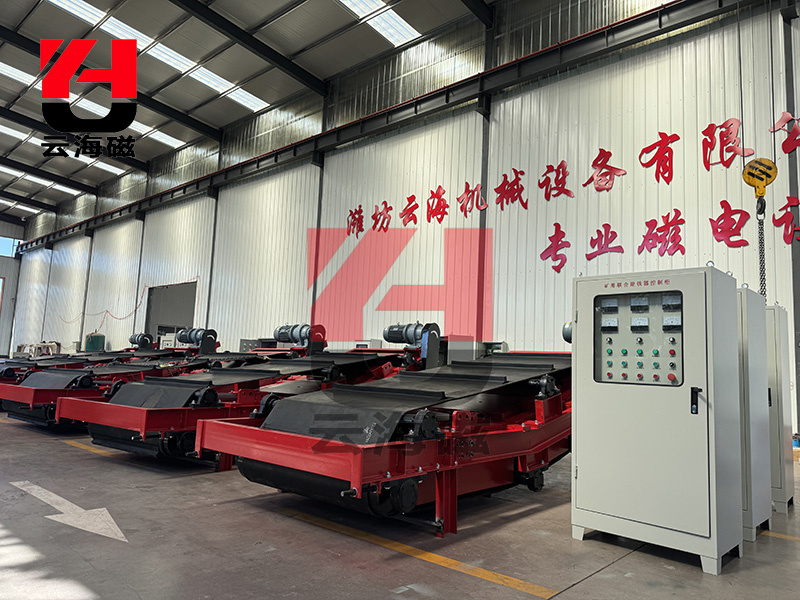

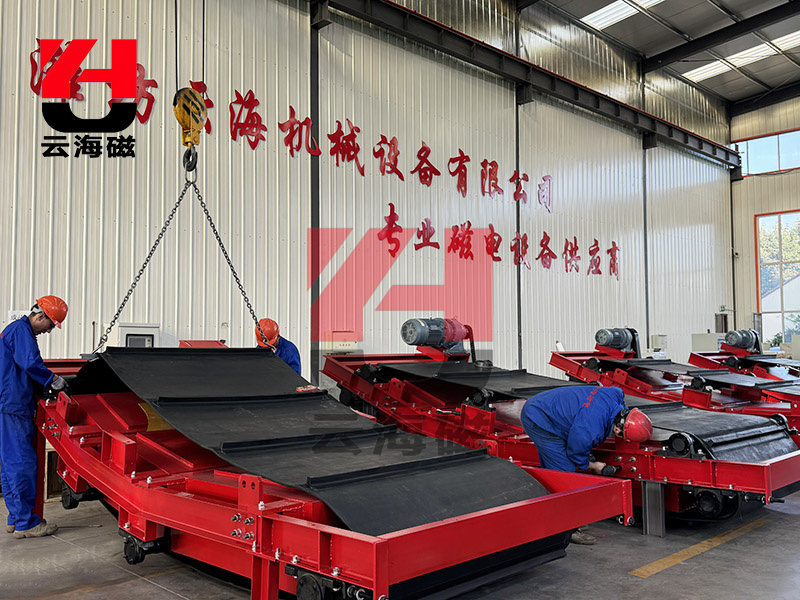

product image

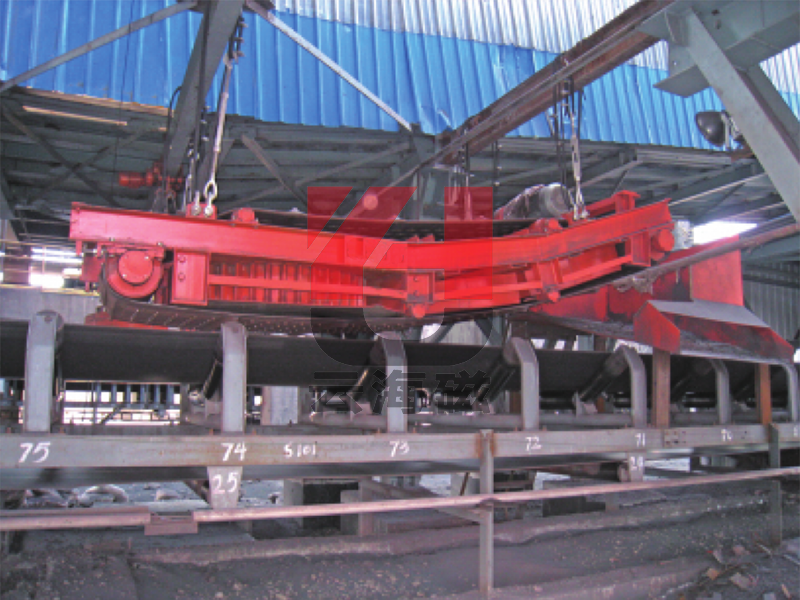

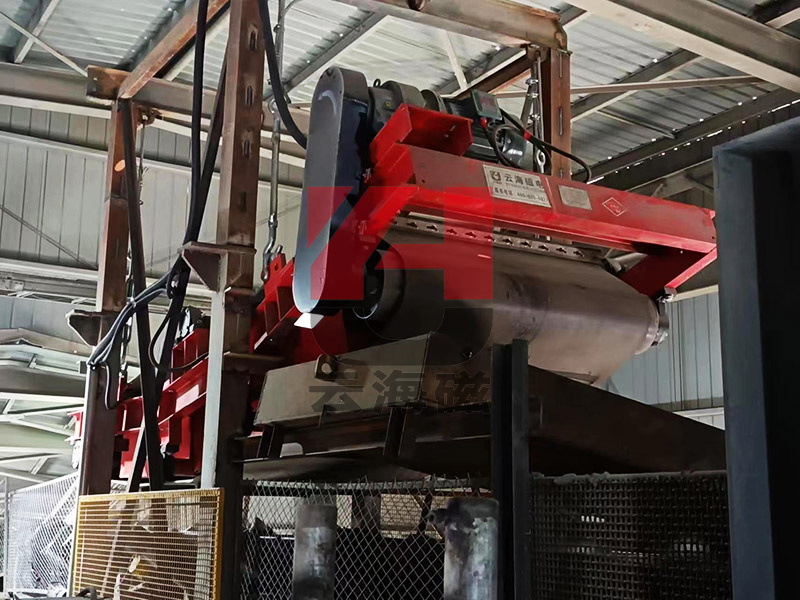

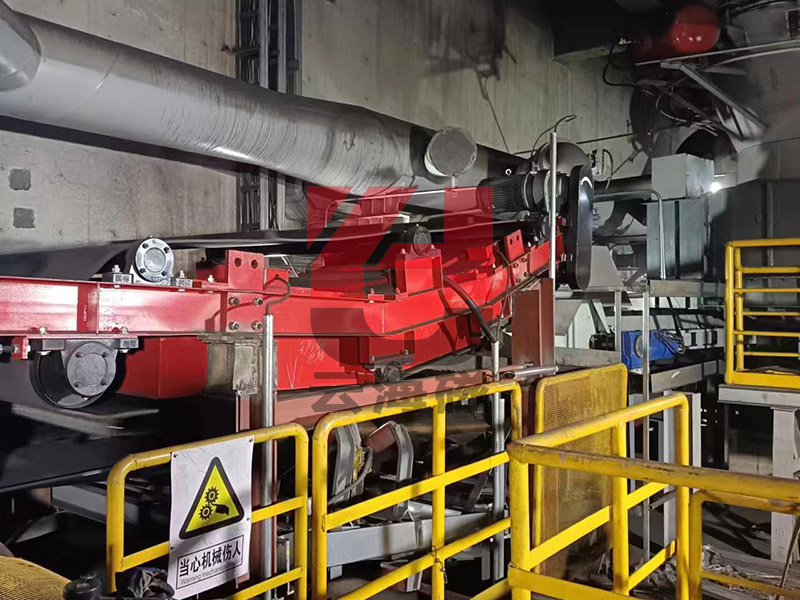

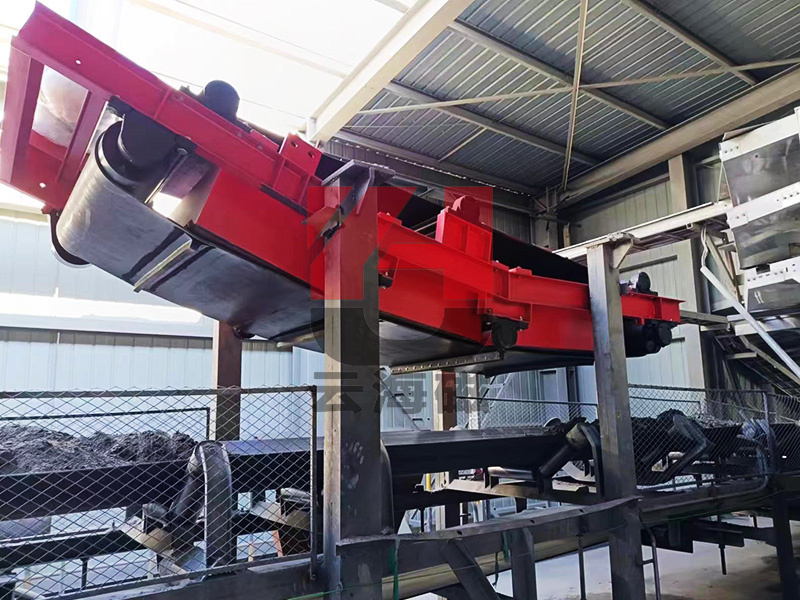

on-site installation
