FD dry powder electromagnetic magnetic separator

Overview

The FD series electromagnetic magnetic separator produced by our company has strong magnetic force, large magnetic penetration depth, and obvious iron removal effect on powders or ultrafine particles. The unique magnetic structure design provides super strong magnetic separation effect. Suitable for various industries such as fine chemicals, pharmaceuticals, food, ceramics, quartz sand, etc. Customers can bring materials to our company for experiments, and we welcome customers to visit and inspect our company.

Product Introduction

The electromagnetic dry powder iron remover uses electromagnetic super strong force to remove ferromagnetic impurities (iron filings, magnetic ore particles, etc.) in fine dry powder materials (such as mineral powder, battery materials, chemical powders, ceramic raw materials, quartz sand, etc.). Its core is to generate a super strong magnetic field (adjustable strength by current) through an energized electromagnetic coil and focus it on the working area through a magnetic circuit system. When the material flows through the magnetic field, iron impurities are adsorbed due to strong magnetic adsorption force, while non-magnetic materials are smoothly discharged. The removal of adsorbed impurities can be done manually (shutdown cleaning) or automatically (power-off demagnetization self dumping, mechanical scraping, vibration detachment).

Technical Features

1. Low energy consumption, uniform magnetic field distribution, high strength, high stability, and excellent iron removal performance.

2. Magnetic substances at the micrometer level can be removed through a sieve.

3. Adopting a symmetrical vibration motor arrangement to cause high-frequency vibration of the screen mesh and improve the flowability of the raw materials.

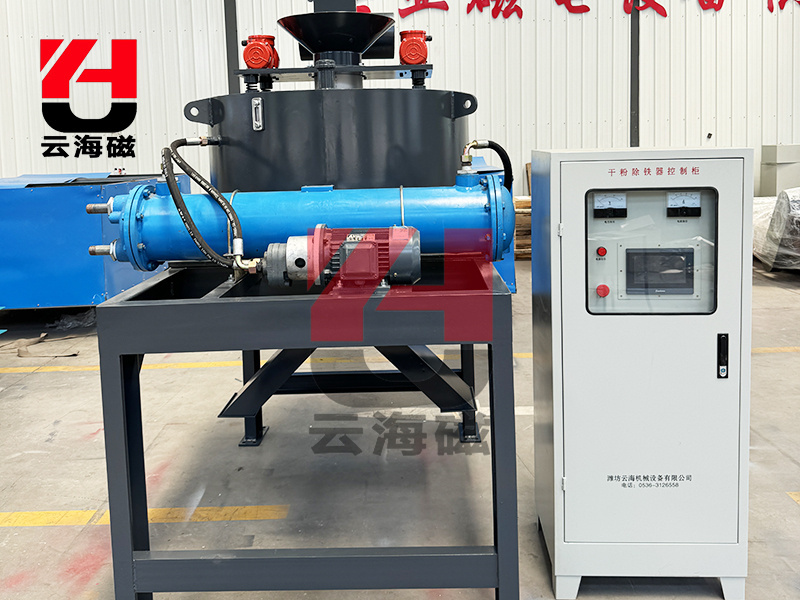

4. Oil water forced circulation cooling, with excellent heat dissipation effect; The entire oil-water pipeline is made of stainless steel material, ensuring a clean and maintenance free system.

5. The loss rate of raw materials is extremely low and there is no pollution.

6. Equipped with a dedicated electrical control cabinet, built-in PLC control and touch screen for easy, fast, and safe operation, achieving continuous cycle work of fully automatic iron removal and cleaning.

8. The working time of each stage of iron removal cleaning can be freely adjusted on the touch screen to meet different raw materials and working conditions.

9. The interface settings in the entire machine area are reasonable and easy to identify and search for.

10. The design conforms to ergonomics, with convenient operation, maintenance, and upkeep, and complete safety protection measures.

Technical Specifications

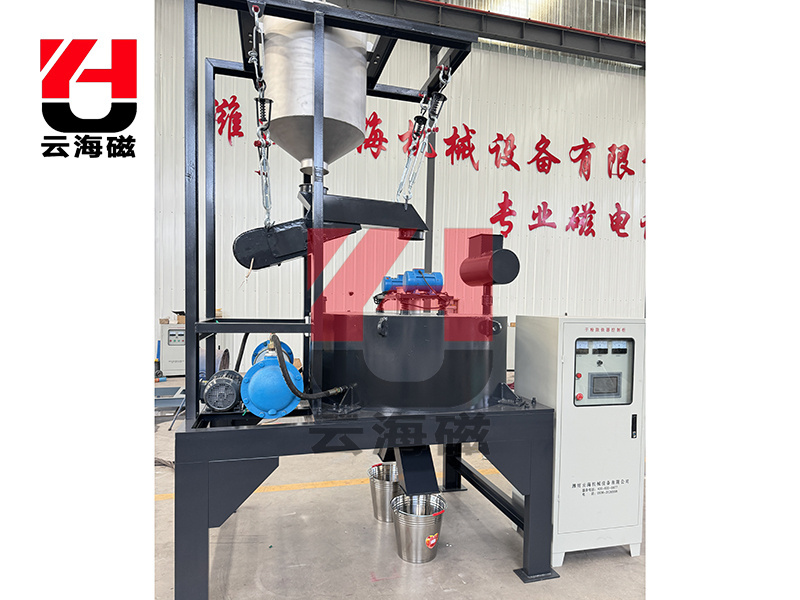

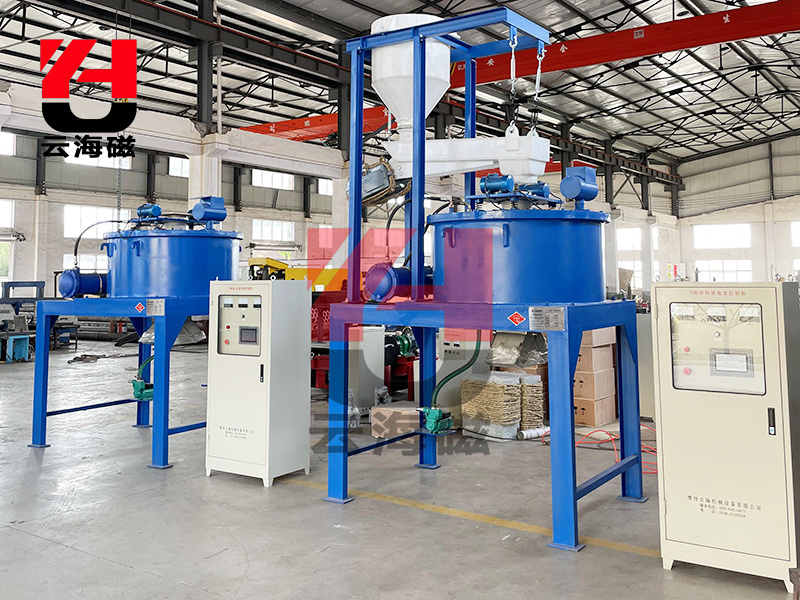

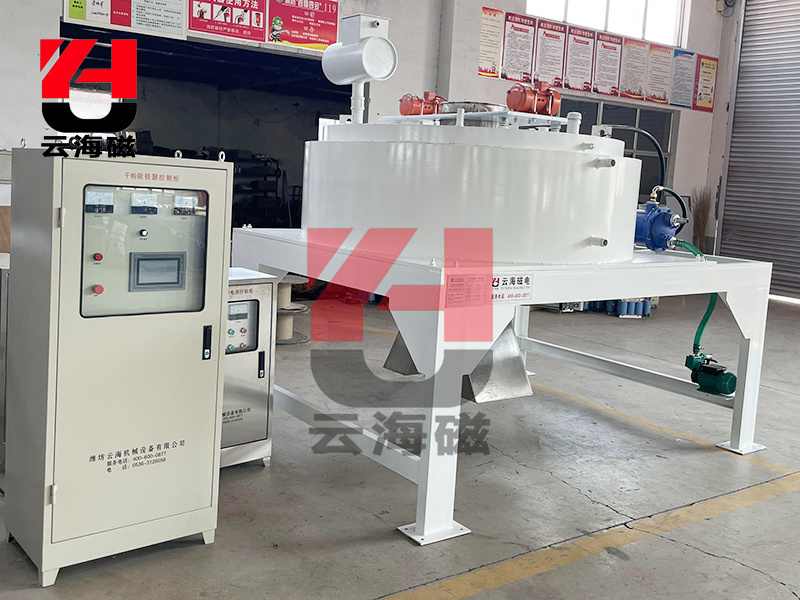

product image
