CF/CFL electromagnetic iron remover
Product Introduction
The CF and C FL series suspended electromagnetic iron remover is one of the earliest and most widely used iron removal equipment in China. It has always been trusted by users for its easy operation, stable and reliable performance, reasonable price, low maintenance rate, and fully enclosed multi working magnetic pole magnetic circuit structure. It is a commonly used equipment for iron removal in harsh working environments. Can be used interchangeably with RCDB dry disc electromagnetic separator. Due to the use of computer-aided design optimization to improve the product structure, the technical parameters of this series of products have reached the advanced level of similar foreign products.
Note: CF represents copper core winding, CFL represents aluminum core winding.

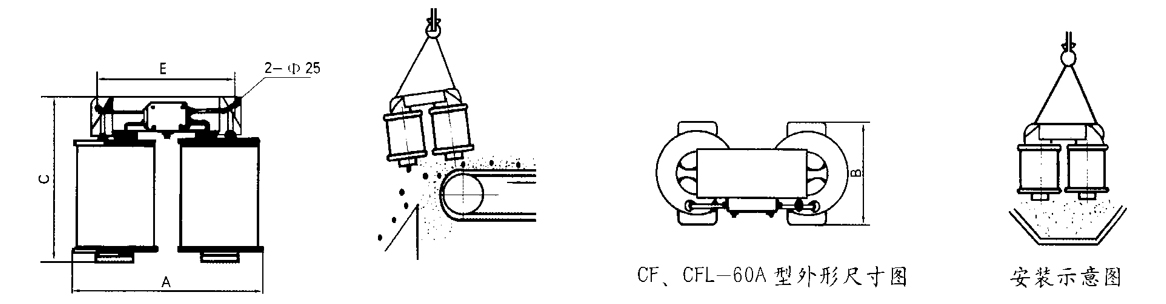

Installation Diagram
Technical Specifications
| Parameters/Project/Model/Applicable Bandwidth(mm) | CF-60A | CFL-60A 650 | CF-90A | CFL-90A 800 | CF-130A CFL-130A 1000 | ||
| Rated suspension height(mm) | 150 | 200 | 250 | ||||
| excitation power(kw) | 1.25 | 1.80 | 3.5 | ||||
| weight(kg) | 900 | 700 | 1630 | 1340 | 3550 | 2830 | |
| size(mm) | A | 950 | 865 | 1305 | |||
| B | 500 | 865 | 385 | ||||
| C | 728 | 693 | 375 | ||||
| E | 670 | 570 | 380 | ||||
| F | 440 | 590 | |||||
| Equipped with power supply | KGLA-20/500 | KGLA-20/500 | KGLA-20/500 | ||||
Note: All models in this series have reinforced T1, T2, and T3 product designs that are higher than the national standard. The rated magnetic field strength at the lifting height is 90mT, 120mT, and 150mT, respectively, and can be customized according to customer requirements.

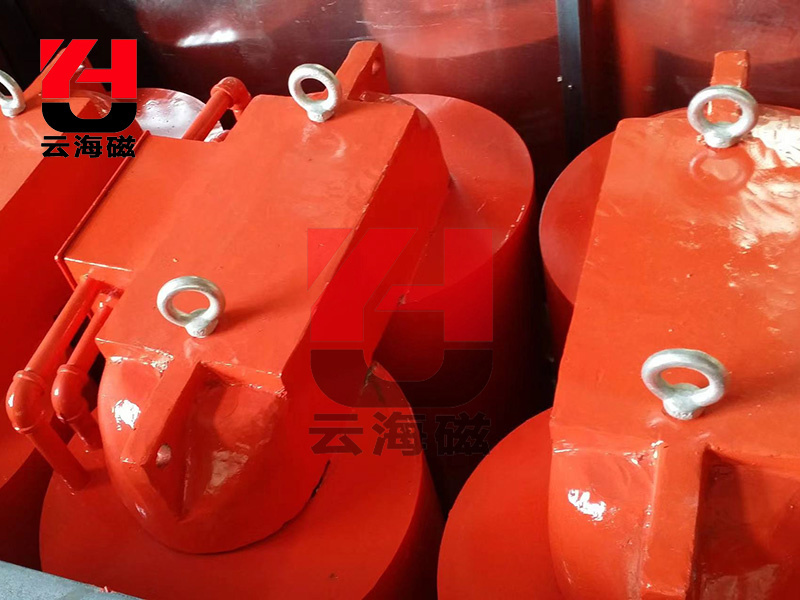

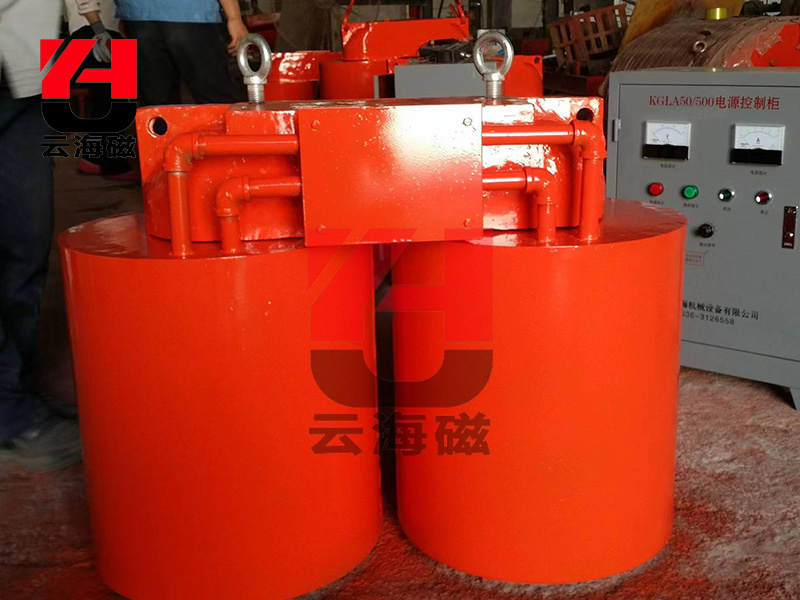

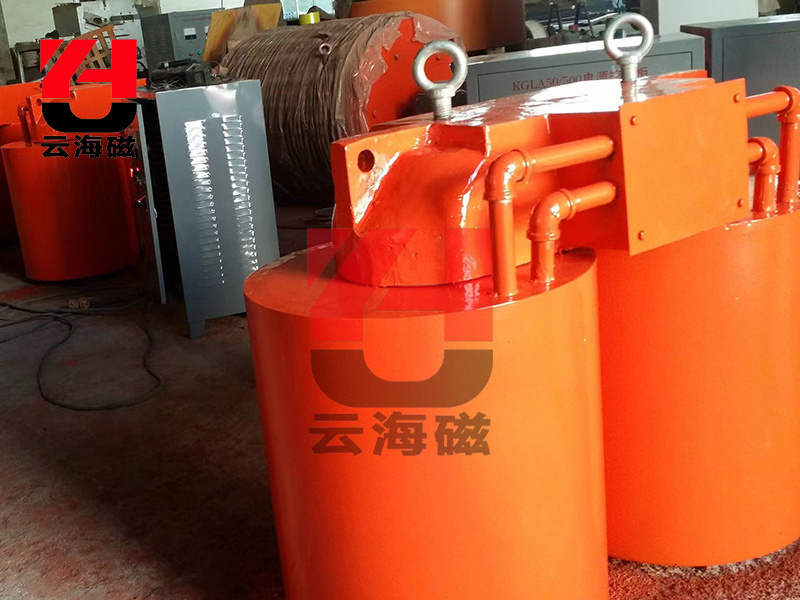

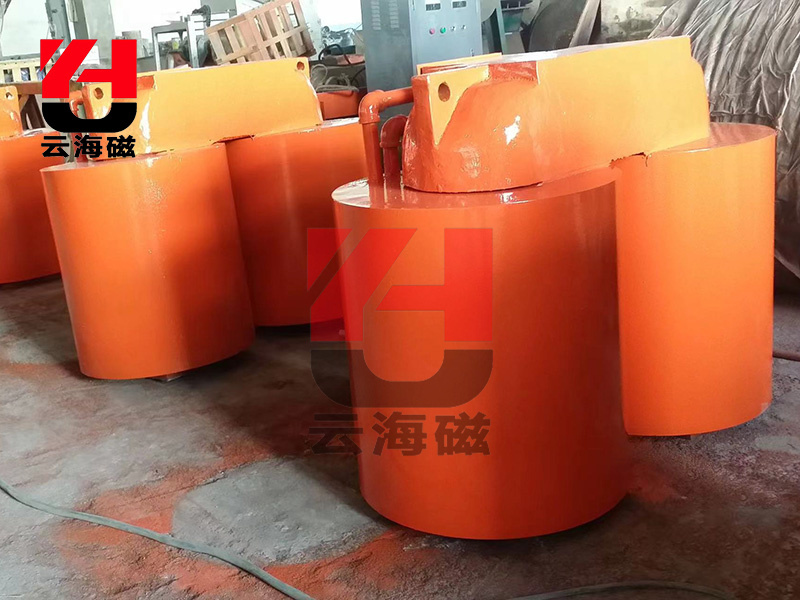

product image

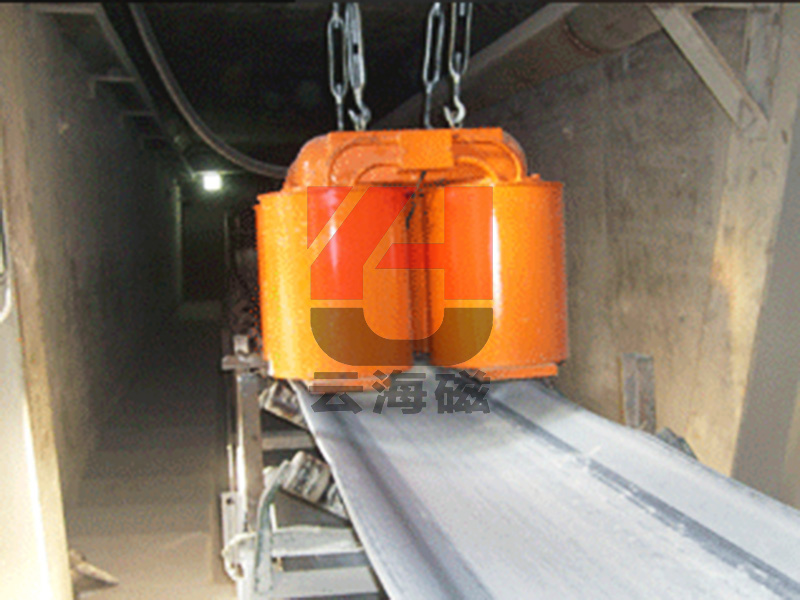

on-site installation
