RCDF oil cooled electromagnetic self dumping iron remover

Product Introduction

The RCDF series oil cooled self dumping electromagnetic iron remover is an iron unloading mechanism composed of a drive motor, a drum, and an iron unloading tape with a scraper added to the RCDE series oil cooled suspended electromagnetic iron remover. It has the advantages of strong magnetic force, fast heat dissipation, dust prevention, rain resistance, corrosion resistance, continuous operation, and low maintenance costs. Since its launch, it has won high praise from users for its convenient operation, low failure rate, and small maintenance requirements.

工作原理1

Technical Features

◆The excitation coil is specially designed to facilitate the transfer of heat to the transformer oil, effectively reducing the temperature of the coil.

◆The coil insulation is F-grade, using a new type of high-temperature thermal oil. The oil circuit design is reasonable, smooth and unobstructed, with fast circulation and high heat dissipation efficiency.

◆The coil is completely immersed in sealed cooling oil and has excellent dust, moisture, and corrosion resistance capabilities.

◆Ripple type heat dissipation fins significantly increase the heat dissipation area, and the temperature rise of the continuous coil is ≤ 70 ℃ for a long time, reaching the technical level of similar foreign products.

◆ Automatic iron unloading, easy maintenance, drum shaped structure with belt automatic correction function, specially designed fully sealed bearing seat, can achieve long-term trouble free operation.

Technical Specifications

Model/Parameters/Project	Adaptive bandwidth mm	Rated lifting height mm	Magnetic field strength ≥ mT	Material thickness ≤ mm	Excitation power ≤ kw	Drive power ≤ kw	Adapt to belt speed ≤ m/s	Weight kg	Overall dimensions mm
Model/Parameters/Project	Adaptive bandwidth mm	Rated lifting height mm	Magnetic field strength ≥ mT	Material thickness ≤ mm	Excitation power ≤ kw	Drive power ≤ kw	Adapt to belt speed ≤ m/s	Weight kg	A	B	C	D	E
RCDF-5	500	150	60	100	1.2	1.5	4.5	1100	1980	1120	1020	650	1050
RCDF-6	600	175	60	130	1.8	1.5		1500	2140	1270	1070	700	1170
RCDF-6.5	650	200	70	150	2	2.2		1800	2270	1380	1080	750	1270
RCDF-8	800	250	70	200	3	2.2		2500	2650	1570	1100	810	1420
RCDF-10	1000	300	70	250	4.5	3		3550	2960	1620	1200	810	1580
RCDF-12	1200	350	70	300	6	4		4650	3250	1950	1300	940	1780
RCDF-14	1400	400	70	350	8.5	4		6290	3550	2190	1400	940	1950
RCDF-16	1600	450	70	400	12.5	5.5		7770	3650	2210	1250	940	2180
RCDF-18	1800	500	70	450	18	7.5		8900	3950	2400	1500	940	2315

Note: All models in this series have reinforced T1, T2, and T3 product designs that are higher than the national standard. The rated magnetic field strength at the lifting height is 90mT, 120mT, and 150mT, respectively, and can be customized according to customer requirements.

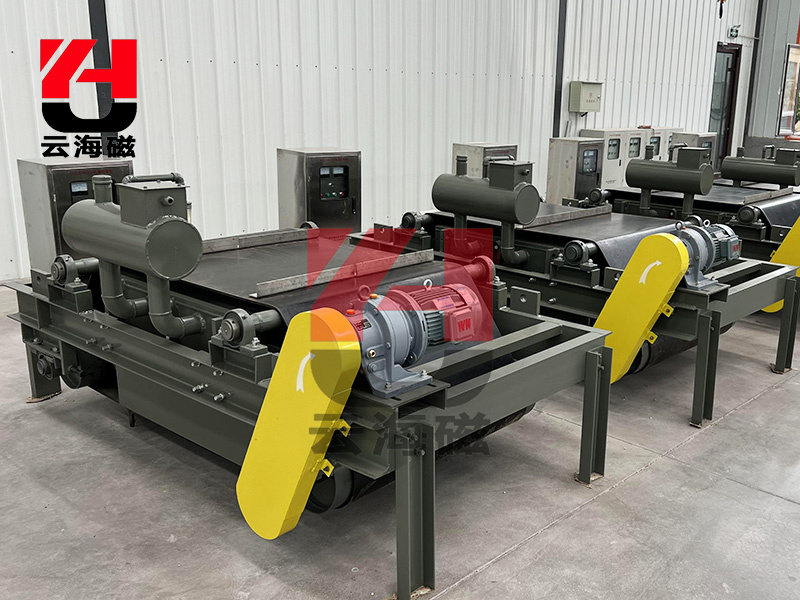

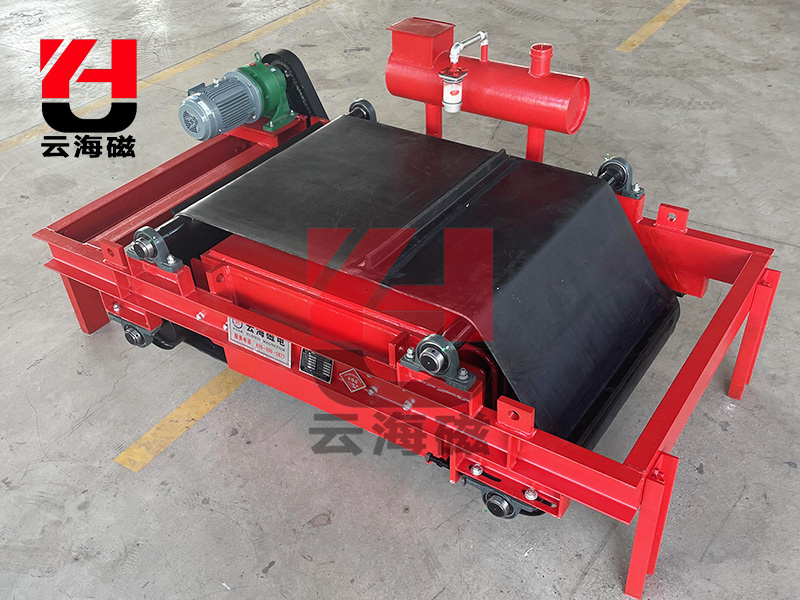

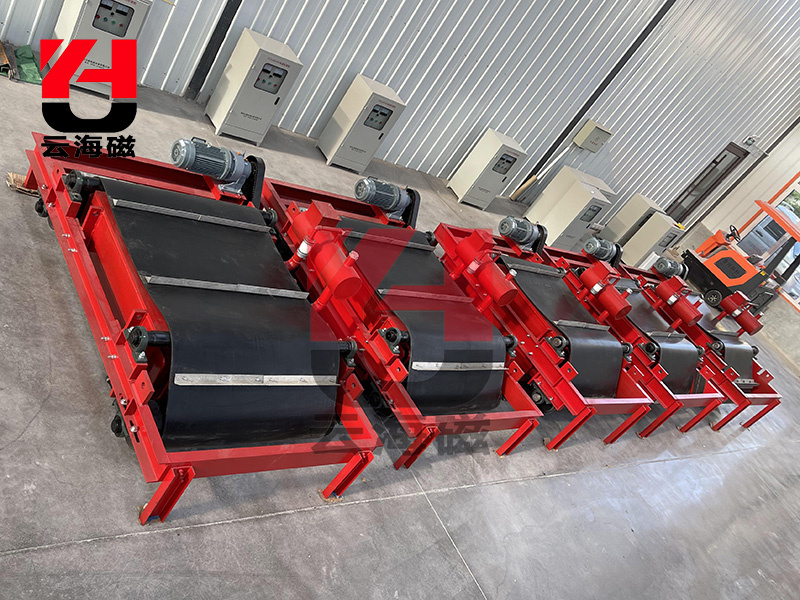

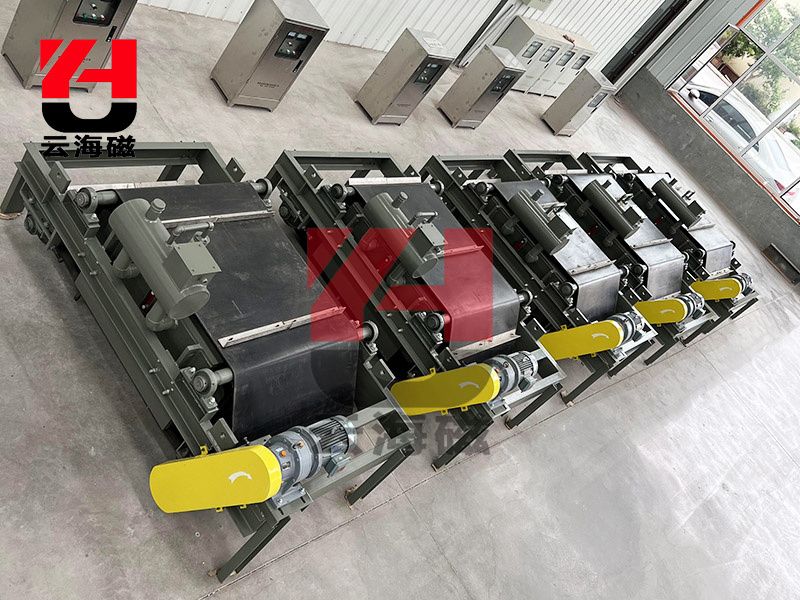

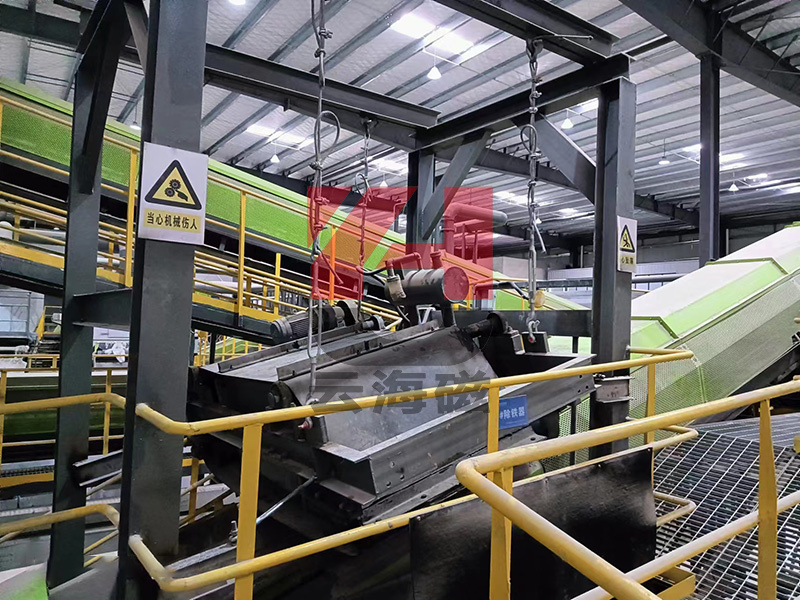

product image
