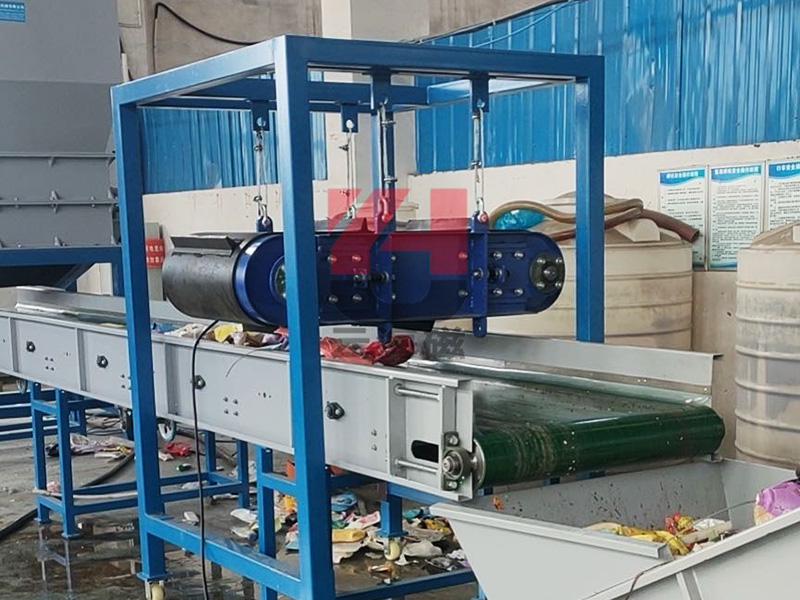

RCYQ Lightweight Permanent Magnet Self Removable Iron Tool

RCYQ lightweight permanent magnet self removing iron device has a simple structure, strong magnetic force, reliable operation, easy maintenance, and long service life. It is suitable for industries such as environmental protection, wood industry, grain, casting, chemical industry, and building materials.

400-600-0877

Manual response

Technical response

customized solution

Product advantages

Weifang Yunhai Machinery Equipment Co., Ltd. was founded in 2009. Its main products include industrial automation batching systems, electromagnetic permanent magnet separators, permanent magnet magnetic separators, electromagnetic vibration feeders, belt screw conveyors, electromagnetic drums, crushers, packaging machines, dust collectors, and other series of products. We have well-equipped laboratories and laboratories, hire industry experts to lead experiments and laboratory work, provide technical test data and research and development basis, and provide successful and effective iron removal solutions for various industries.

+
Company incorporation
+
reputable manufacturer
+
invention patent
+
product coverage

RCYQ Lightweight Permanent Magnet Self Removable Iron Tool

Product Introduction

The RCYQ series lightweight permanent magnetic tape iron remover is characterized by its small overall size, which can be called a lightweight permanent magnetic tape iron remover. Its length and height are 70% and 86% of the C-type, respectively. Low noise and able to continuously absorb and discard iron. Lightweight, with an average weight of less than 75% of the C-type, compact structure, few components, easy to lift, convenient for maintenance and management, and economical and practical.

Scope of application: Environmental protection, wood industry, grain, casting, chemical industry, building materials, mining, light industry and other industries, it is a good helper for iron removal operations.

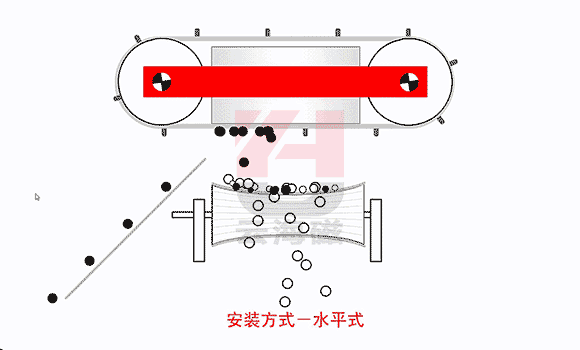

工作原理1

Technical Specifications

Project/Parameters/Model	Applicable bandwidth mm	Rated suspension height mm	Magnetic induction intensity at rated height mT	Applicable belt speed m/s	Iron absorption capacity kg	working system	Drive motor power kw	Main dimensions mm						Weight kg
Project/Parameters/Model	Applicable bandwidth mm	Rated suspension height mm	Magnetic induction intensity at rated height mT	Applicable belt speed m/s	Iron absorption capacity kg	working system	Drive motor power kw	A	B	C	D	E	F	Weight kg
RCY-Q40	400	100	≥40	≤2.0	0.1-5	连续	0.75	1270	840	540	1050	580	270	380
RCY-Q50	500	150	≥50	≤2.5			0.75	1322	1006	615	622	672	270	490
RCY-Q65	650	200	≥50	≤2.5			1.1	1545	1150	710	1300	830	270	640
RCY-Q80	800	250	≥60	≤3.15	0.1-10		1.5	1712	1385	735	972	1022	270	850
RCY-Q100	1000	300	≥60	≤4.0			2.2	1915	1535	735	1500	1298	270	1300
RCY-Q120	1200	350	≥60	≤4.0			2.2	2115	1540	790	1780	1298	270	1650

Note: All models in this series have reinforced T1, T2, and T3 product designs that are higher than the national standard. The rated magnetic field strength at the lifting height is 90mT, 120mT, and 150mT, respectively, and can be customized according to customer requirements.

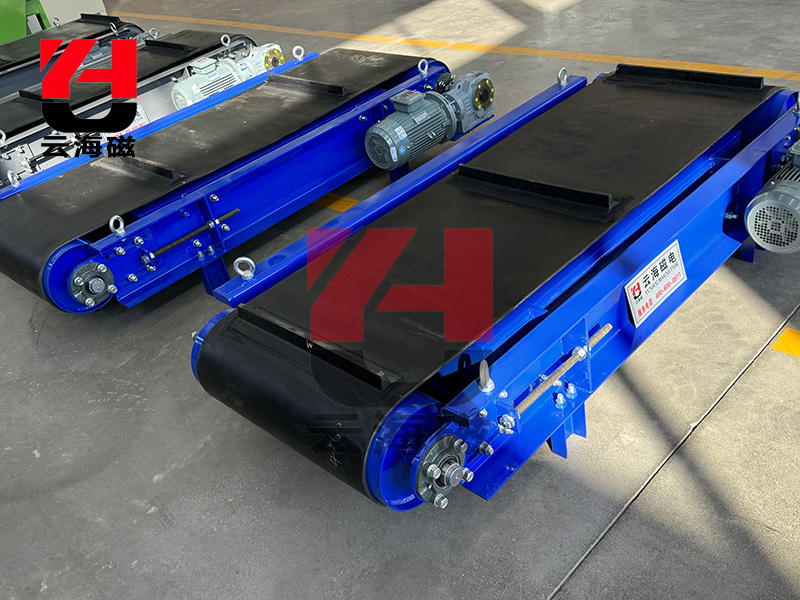

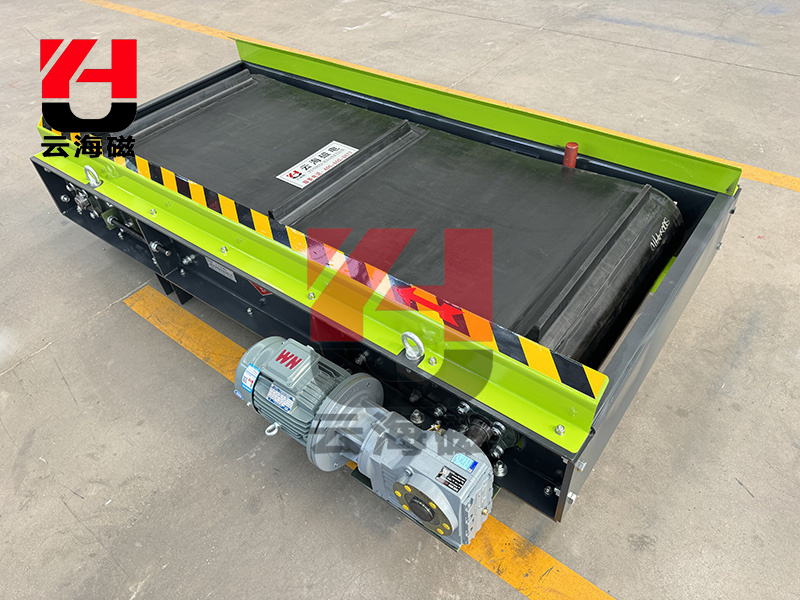

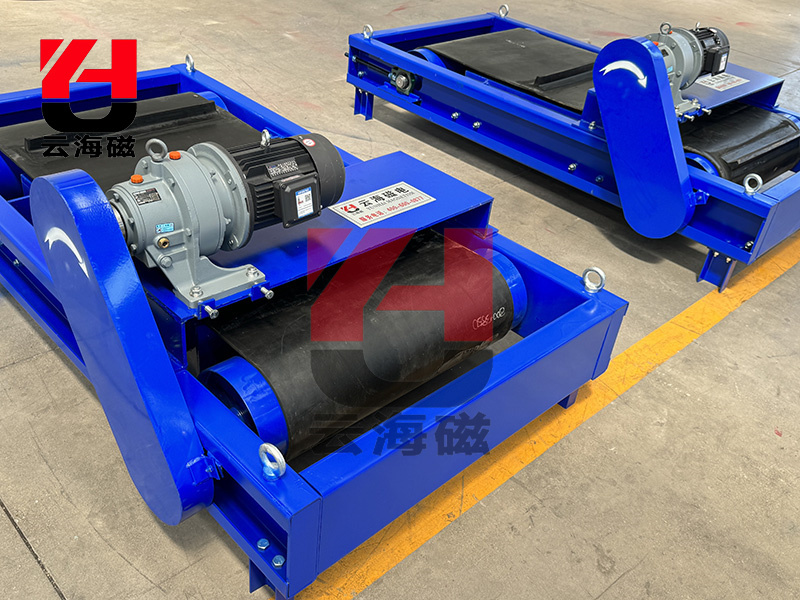

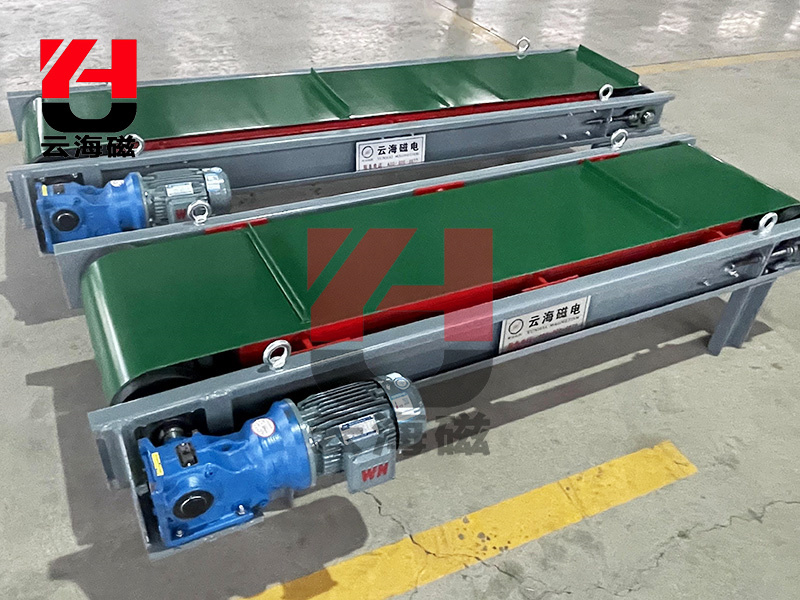

product image
