RCDD electromagnetic self dumping iron remover

Product Introduction

The RCDD series dry self dumping electromagnetic iron remover is a device used for automatically removing impurities from non-magnetic materials in powder or block form. It is internally cast with electrical specific resin and features a self cooling fully sealed structure. It has the advantages of high magnetic penetration depth, strong suction, dust resistance, rain resistance, corrosion resistance, etc., and can still operate reliably in harsh environments.

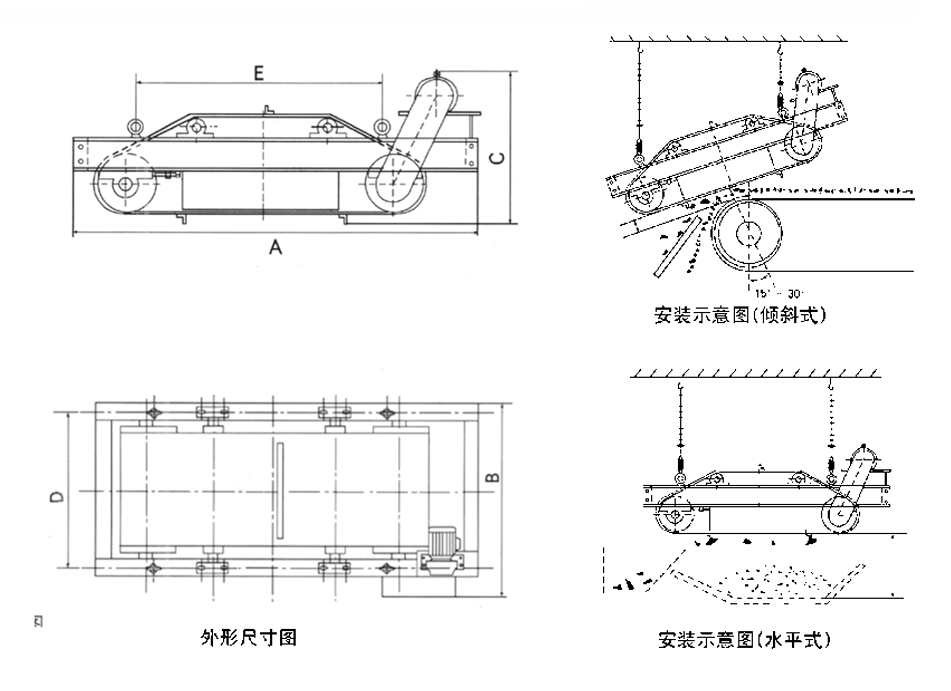

qq截图20250327173007

Scope of Application

Used for removing iron from any material before the crusher and on the conveyor belt, it can be applied to various harsh environmental conditions.

工作原理1

Technical Features

◆The magnetic circuit adopts computer simulation design, with a large magnetic penetration depth and strong magnetic force.

◆The interior is made of electrical specific resin casting, with a self cooling fully sealed structure to prevent dust Rainproof, salt spray resistant, and corrosion-resistant.

◆ Automatic iron unloading, easy maintenance, drum shaped structure with belt automatic correction function, specially designed fully sealed bearing seat, can achieve long-term trouble free operation.

◆The product has good compatibility, complete rectification equipment functions, manual and centralized control functions, and can meet the requirements of various occasions.

◆ It can effectively absorb 0.1-50 kilograms of ferromagnetic substances mixed in non-magnetic materials.

Technical Specifications

Model/Parameters/Project	Applicable bandwidth mm	Rated lifting height mm	magnetic field strength ≥mT	Material thickness ≤mm	excitation power ≤kw	Drive power ≤ kw	adapt to belt speed ≤m/s	Weight tkg	Overall dimensions mm
Model/Parameters/Project	Applicable bandwidth mm	Rated lifting height mm	magnetic field strength ≥mT	Material thickness ≤mm	excitation power ≤kw	Drive power ≤ kw	adapt to belt speed ≤m/s	Weight tkg	A	B	C	D	E
RCDD-5	500	150	60	100	1	1.5	4.5	950	2020	1040	775	853	1000
RCDD-6	600	175	60	130	1.6	1.5		1380	2140	1100	800	910	1100
RCDD-6.5	650	200	70	150	2	2.2		1490	2275	1190	820	988	1250
RCDD-8	800	250	70	200	3.6	2.2		1770	2540	1350	865	1133	1300
RCDD-10	1000	300	70	250	5	3.0		2380	2750	1635	940	1420	1500
RCDD-12	1200	350	70	300	6.8	4.0		3170	2950	1750	950	1518	1700
RCDD-14	1400	400	70	350	9	4.0		4800	3150	2050	950	1755	1900
RCDD-16	1600	450	70	400	13	5.5		6300	3750	2240	1180	1980	2050
RCDD-18	1800	500	70	450	18	7.5		8800	3950	2450	1290	2200	2200
RCDD-20	2000	550	70	500	23.5	7.5		11200	4350	2600	1350	2250	2300

Note: All models in this series have reinforced T1, T2, and T3 product designs that are higher than the national standard. The rated magnetic field strength at the lifting height is 90mT, 120mT, and 150mT, respectively, and can be customized according to customer requirements.

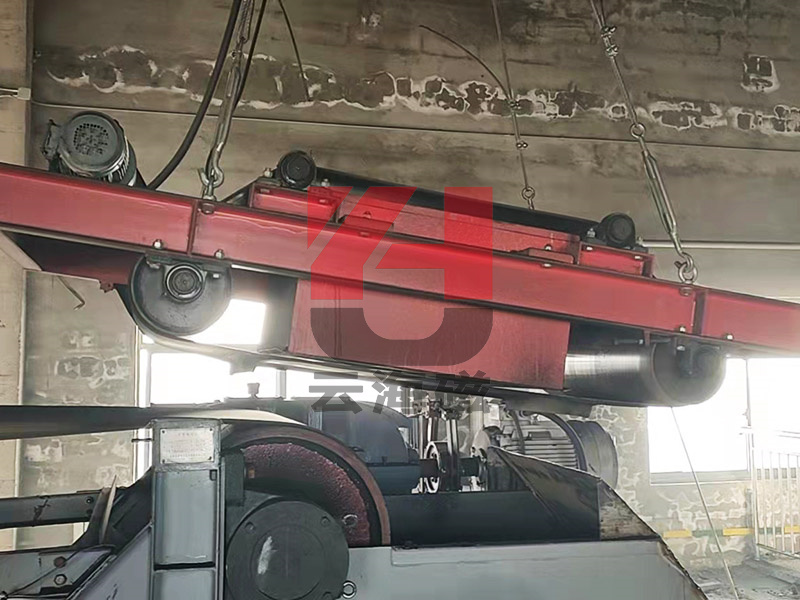

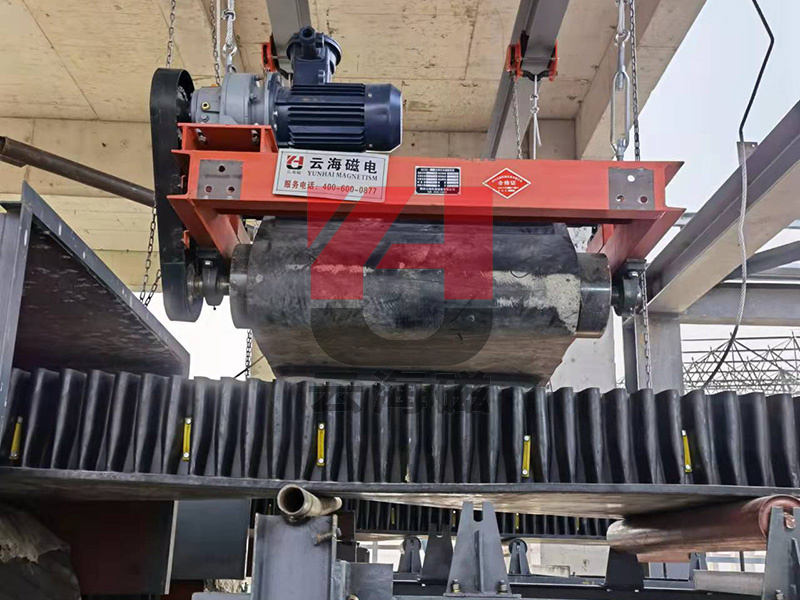

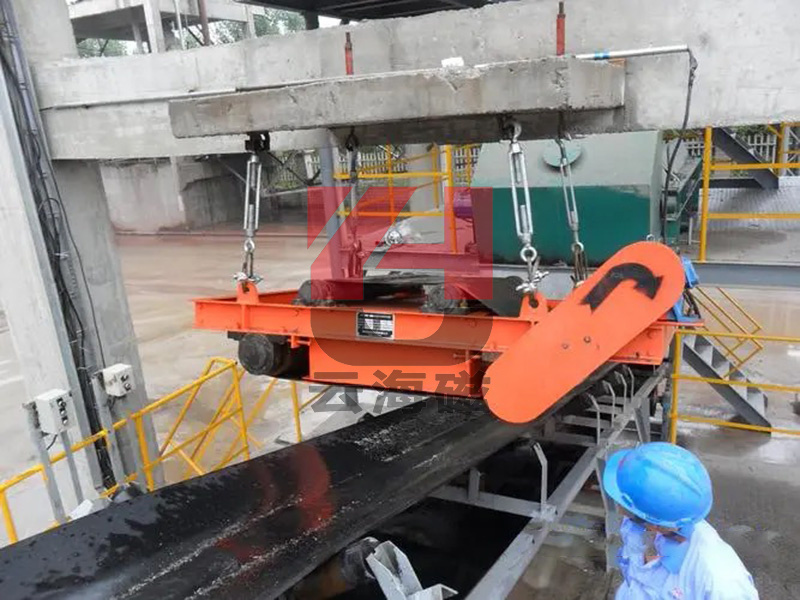

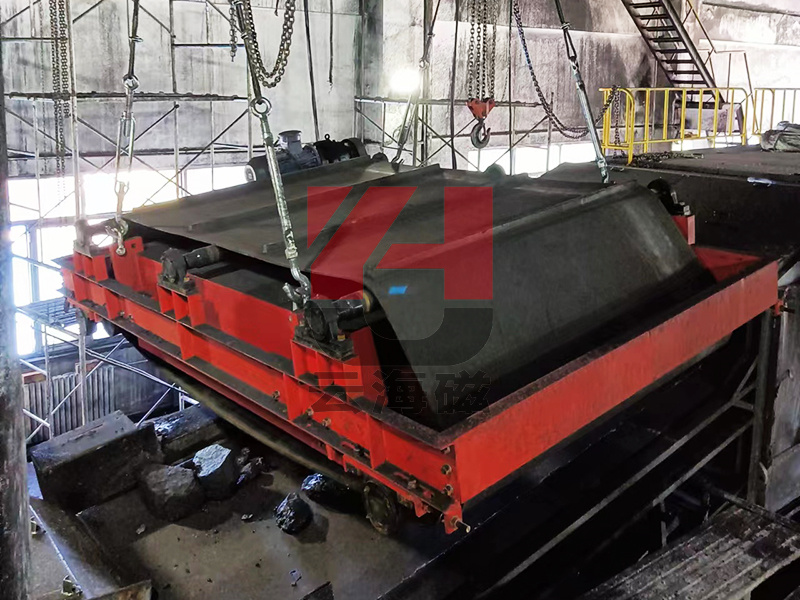

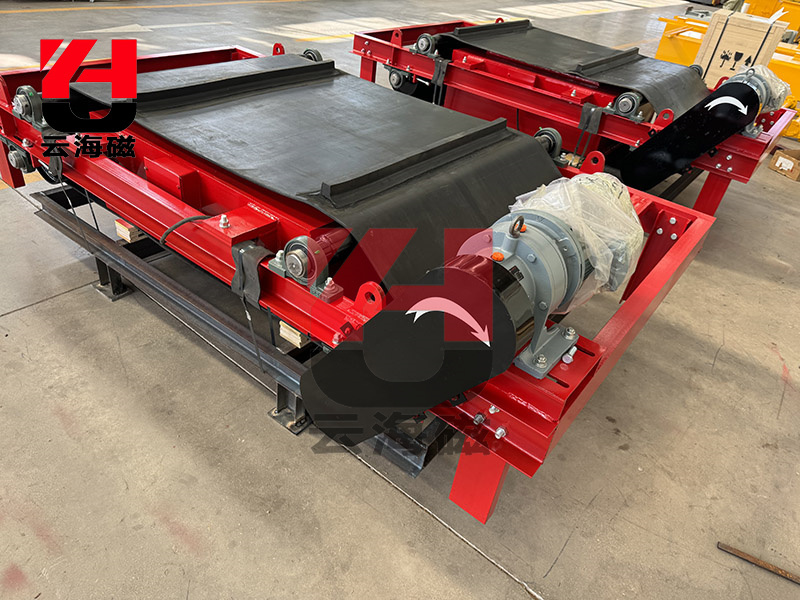

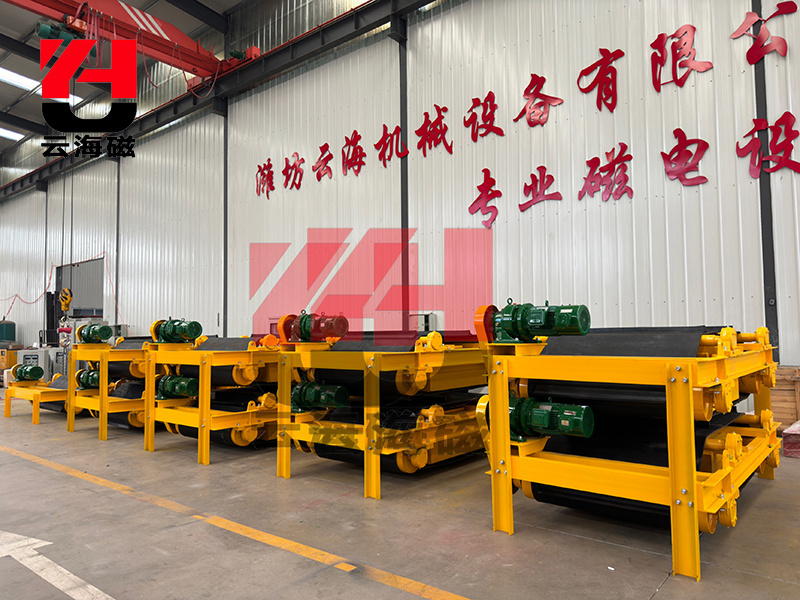

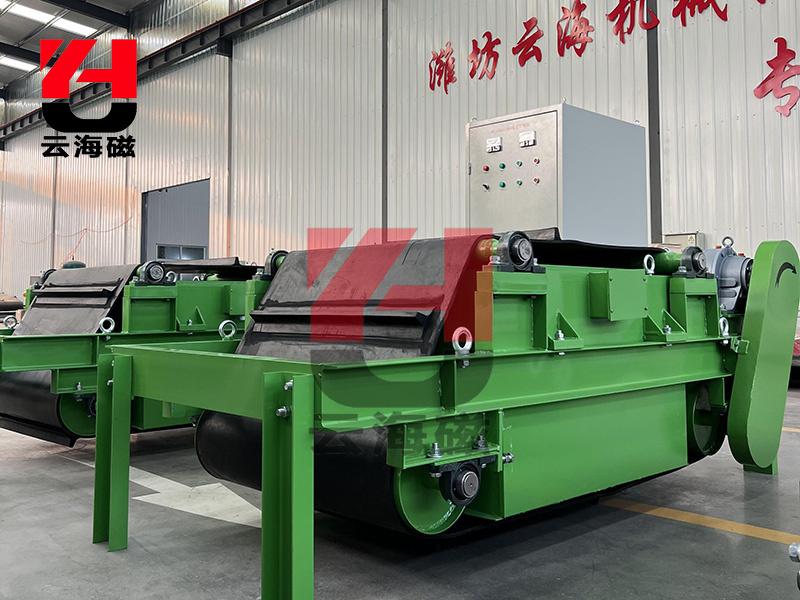

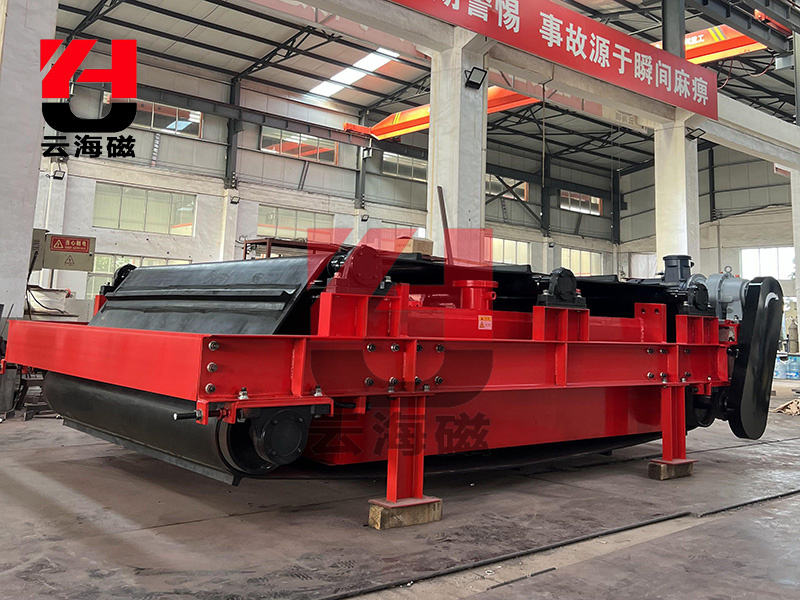

product image
