RCYD permanent magnet self dumping iron remover

Product Introduction

The RCYD (C) series permanent magnet self dumping iron remover is composed of high-performance permanent magnet cores, scrap iron belts, reduction motors, frames, rollers, and other parts, and is used in conjunction with various conveyors. Used for automatically removing ferromagnetic substances weighing 0.1-45 kilograms from non-magnetic materials. The internal magnetic circuit adopts computer simulation design and a perfect dual pole structure to ensure the long-term operation of the whole machine without faults in harsh environments.

工作原理1

Technical Features

The magnetic circuit adopts computer simulation design, with a dual pole structure, high magnetic field strength, large gradient, and strong suction force.

High performance neodymium iron boron is used as a magnetic source, with high magnetic energy accumulation and resistance to demagnetization. The demagnetization rate does not exceed 5% after eight years.

The waist drum shaped drum structure has automatic correction function, fully sealed bearing seat, good sealing performance, and can adapt to various harsh environments.

The belt automatically unloads iron, ensuring long-term trouble free continuous operation.

The control part can be interlocked with the belt conveyor, achieving both on-site manual control and centralized control.

qq截图20250327173007

Technical Specifications

Parameters/Project/Model	Adaptive bandwidth mm	Rated lifting height mm	magnetic field strength ≥mT	Material thickness ≤mm	drive power ≤kw	adapt to belt speed ≤m/s	working system	Weight kg	Dimensions mm
Parameters/Project/Model	Adaptive bandwidth mm	Rated lifting height mm	magnetic field strength ≥mT	Material thickness ≤mm	drive power ≤kw	adapt to belt speed ≤m/s	working system	Weight kg	A	B	C	D	E
RCYD(C)-5	500	150	60	80	1.5	4.5	continuous	750	1900	735	935	950	753
RCYD(C)-6	600	175	60	120	1.5			920	2050	780	1030	1100	753
RCYD(C)-6.5	650	200	70	150	2.2			1200	2165	780	1080	1200	888
RCYD(C)-8	800	250	70	200	2.2			1400	2350	796	1280	1300	1088
RCYD(C)-10	1000	300	70	250	3.0			2120	2660	920	1550	1400	1335
RCYD(C)-12	1200	350	70	300	4.0			3350	2900	970	1720	1550	1515
RCYD(C)-14	1400	400	70	350	4.0			4450	3225	1050	1980	1800	1755
RCYD(C)-16	1600	450	70	400	5.5			6200	3420	1180	2210	1950	1850
RCYD(C)-18	1800	500	72	450	7.5			8100	3580	1210	2450	2200	2130
RCYD(C)-20	2000	550	72	500	7.5			9700	3800	1300	2700	2400	2410

Note: All models in this series have reinforced T1, T2, and T3 product designs that are higher than the national standard. The rated magnetic field strength at the lifting height is 90mT, 120mT, and 150mT, respectively, and can be customized according to customer requirements.

无标题文档

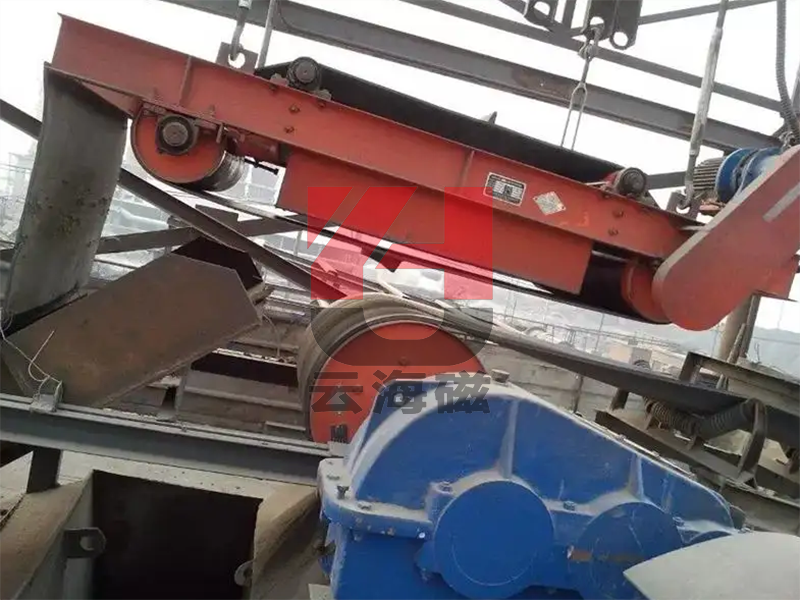

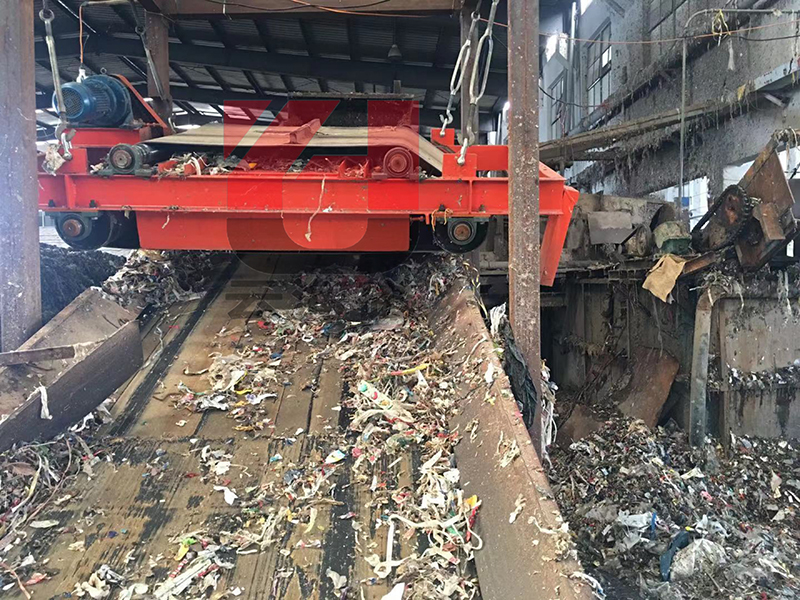

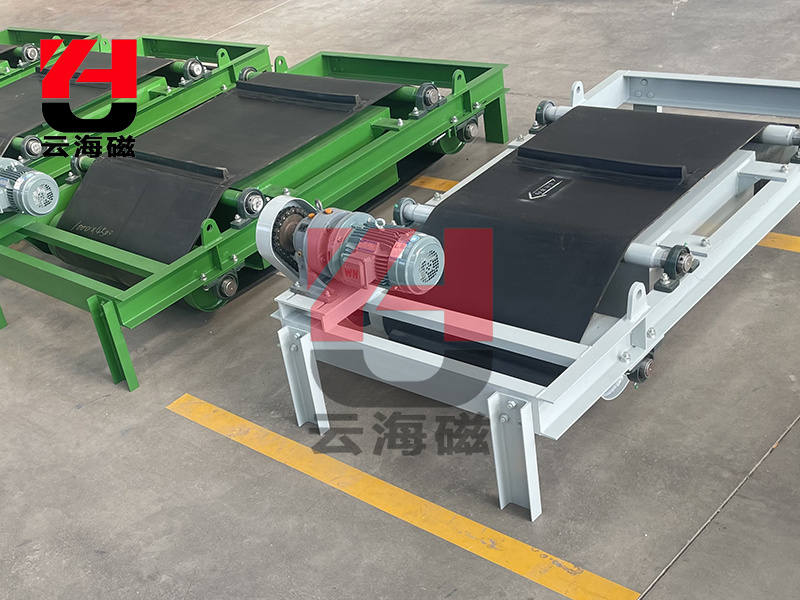

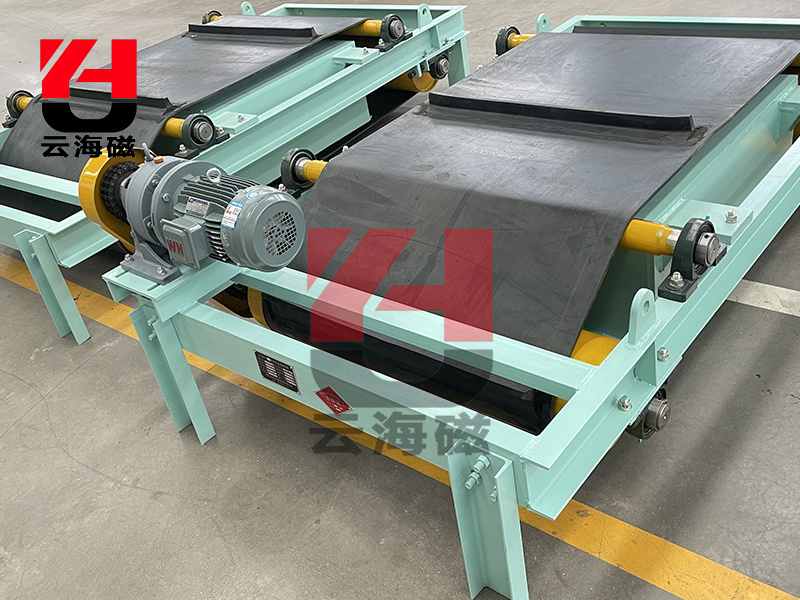

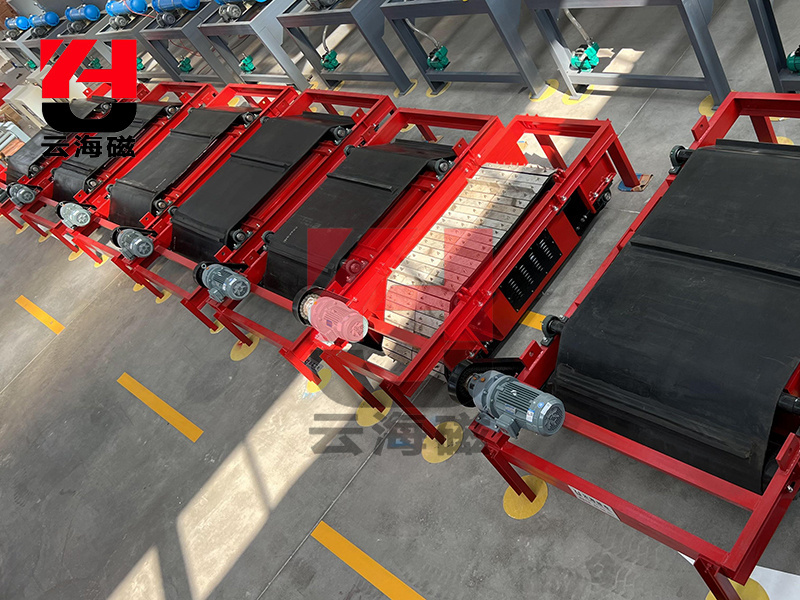

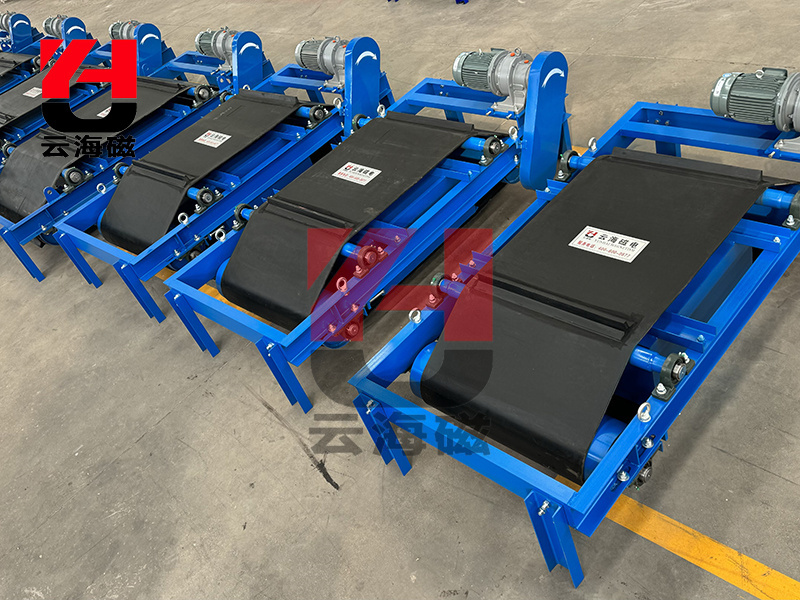

product image
