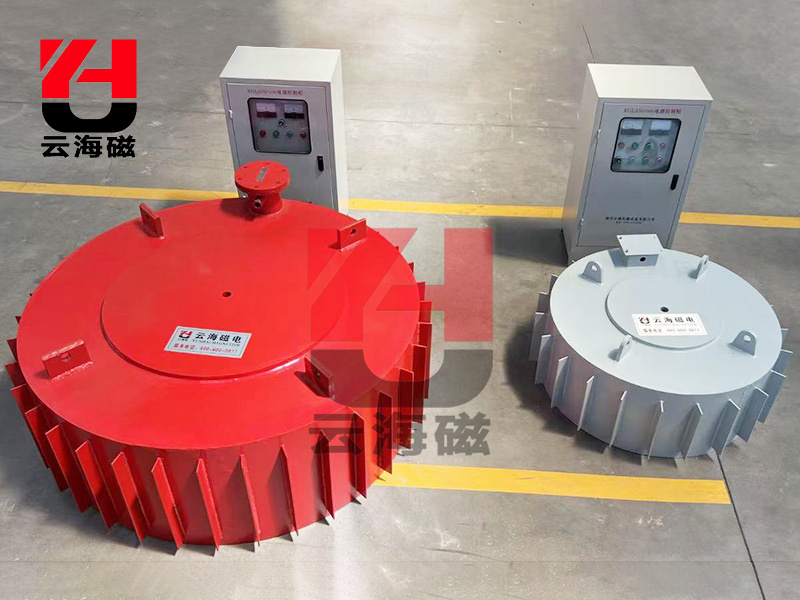

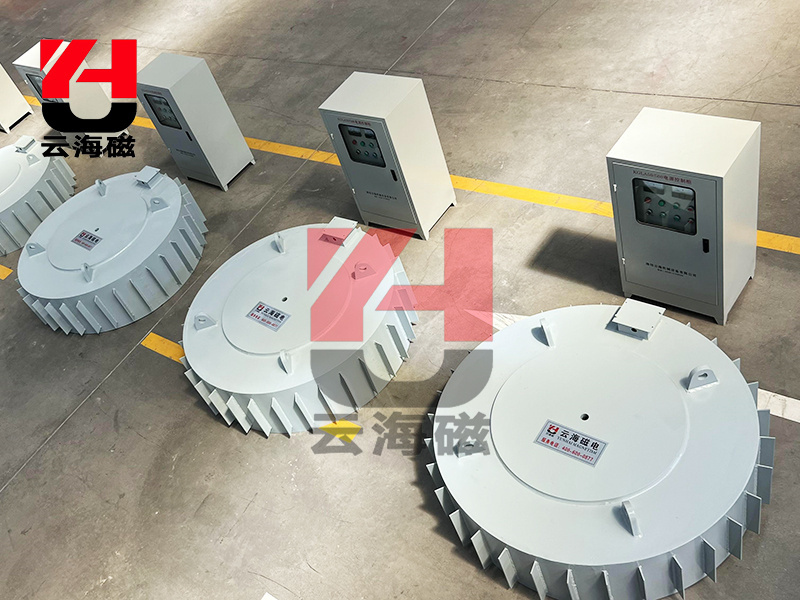

RCDB disc type electromagnetic iron remover

Scope of Application

　　Used for removing iron from any material before the crusher and on the conveyor belt, it can be applied to various harsh environmental conditions.

Technical Features

The RCDB series dry electromagnetic iron remover (also known as the PDC series disc or RCDY series) is a device used for removing impurities from non-magnetic materials in powder or block form. It is internally cast with electrical specific resin and features a self cooling fully sealed structure. It has the characteristics of high magnetic penetration depth, strong suction, dust prevention, rain resistance, and corrosion resistance, and can still operate reliably in harsh environments. Its main performance indicators meet or exceed the requirements of JB/T7689-97 standard, which is used for removing iron from any material in front of the crusher and on the conveyor belt, and can be applied to various harsh environmental conditions. The magnetic circuit adopts computer simulation design, with a large magnetic penetration depth and strong magnetic force. Internally, it is made of electrical specific resin casting, with a self cooling sealing structure that is dust-proof, rainproof, and corrosion-resistant. Wave wing type heat sink greatly increases the heat dissipation area and effectively controls temperature rise. It can effectively absorb 0.1-45 kilograms of ferromagnetic substances mixed in non-magnetic materials.

●The magnetic circuit adopts computer simulation design, with deep magnetic permeability and strong magnetic force.

●Internally, it is made of electrical specific resin casting, with a self cooling fully sealed structure that is dustproof, rainproof, and corrosion-resistant.

●Wave wing type heat sink greatly increases the heat dissipation area and controls the temperature rise.

●It can absorb 0.1-50 kilograms of ferromagnetic substances mixed in non-magnetic materials.

Technical Specifications

RCDB Regular Series

Model/Parameters/Project	Adapt to bandwidth	Rated lifting height	magnetic field strength	Material thickness	excitation power	adapt to belt speed	weight	Overall dimensions
Model/Parameters/Project	Adapt to bandwidth	Rated lifting height	magnetic field strength	Material thickness	excitation power	adapt to belt speed	weight	A	B	D	d
RCDB-5	500	150	60	90	1	4.5	430	280	325	610	450
RCDB-6	600	175	60	120	1.6		580	280	325	740	500
RCDB-6.5	650	200	70	150	2		680	280	325	816	640
RCDB-8	800	250	70	200	3.6		950	310	355	960	780
RCDB-10	1000	300	70	250	5		1520	310	360	1200	920
RCDB-12	1200	350	70	300	6.8		2250	310	365	1400	1000
RCDB-14	1400	400	70	350	9		2950	405	485	1650	1400
RCDB-16	1600	450	70	400	13		4800	460	540	1900	1650
RCDB-18	1800	500	70	450	18		6900	530	610	2150	1800

Note: All models in this series have reinforced T1, T2, and T3 product designs that are higher than the national standard. The rated magnetic field strength at the lifting height is 90mT, 120mT, and 150mT, respectively, and can be customized according to customer requirements.

Equipment Installation Diagram

设备安装示意图
